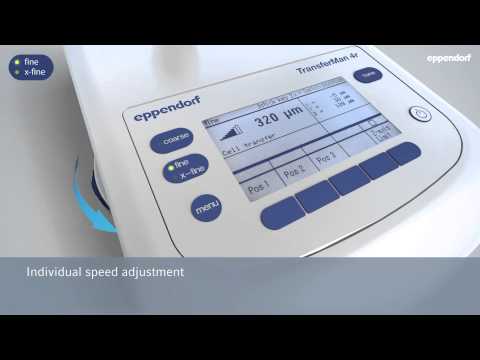

Personalized speed control with Eppendorf TransferMan 4r
Videos not loading, because cookies have been rejected. Change your
Individual position storage with Eppendorf TransferMan 4r
Videos not loading, because cookies have been rejected. Change your
Easy mounting of capillary with Eppendorf TransferMan 4r
Videos not loading, because cookies have been rejected. Change your
Easy exchange of capillary with Eppendorf TransferMan 4r
Videos not loading, because cookies have been rejected. Change your
Unique DualSpeed joystick of Eppendorf TransferMan 4r
Videos not loading, because cookies have been rejected. Change your
User interface of Eppendorf TransferMan 4r - Choose your application
Videos not loading, because cookies have been rejected. Change your
Optimize the use for your micromanipulators
Videos not loading, because cookies have been rejected. Change your
Product Information
Successful cell manipulation requires precision and fast sample processing. Eppendorf's new flagship micromanipulator, the TransferMan® 4r, is designed to ensure optimal results for any of your micromanipulation requirements. Together with our complete portfolio of cell manipulation products, it forms an ideal system to fully support your cell manipulation applications.
TransferMan-4r
You will find additional download material at the bottom of this page
Products (1)
Accessories (18)
epServices (10)
1 Products
Important note: Micromanipulation/-injection will be discontinued 2 May 2023 – Get more info www.calibrescientific.de
Catalog no.
5193000039
|
Show more Products
Product Information
Applications
Features
The user-friendly TransferMan 4r possesses an ergonomic and innovative design to meet the most demanding micromanipulation requirements. Smart functions, such as improved automated home function and position storage, enable simple and fast execution of even the most complex micromanipulation techniques. The DualSpeed™ joystick allows for precise and intuitive movement in all three dimensions, and dynamic movement for covering longer distances. It is ideal for manipulation of oocytes and early embryos, transfer of stem cells and microparticles, and a wide range of applications in non human reproductive biology. Application-specific user profiles simplify the individual workflow process with four pre-defined application masks to choose from (e.g., for cell transfer, DNA injection, etc). The freely programmable "My app" mask can be optimized according to individual needs. The TransferMan 4r is for research use only.
The exceptionally direct transmission of movement in all directions gives a "real time feeling".
- Micromanipulation of oocytes and early embryos
- ES and iPS cell transfer
- Nuclear transfer
- Pronuclear and cytoplasmic injection (e.g., CRISPR/Cas, TALEN)
- Selection of individual cells (e.g., biopsies, single cell picking)
- Positioning and selection of microparticles
- Microdissection of chromosomes, etc.
- Unique DualSpeed™ joystick for precise and instantaneous movement control
- Maximum stability ensures vibration-free work
- One Joystick for all 3 axes (X, Y, Z) movements and in axial direction (X/Z)

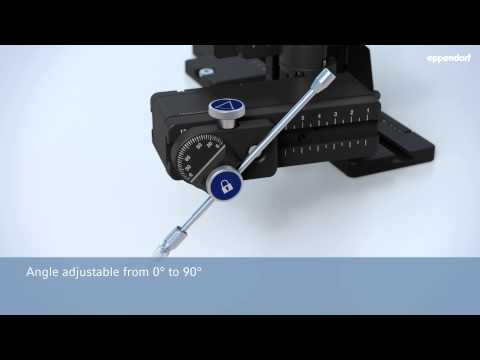

- Angle adjustment from 0° to 90°
- One-hand operation for capillary and angle settings
- Programmable Z-axis limit for preventing capillary breakage
- Connection with Eppendorf PiezoXpert® and electronic microinjectors FemtoJet® 4i/4x
- Can be adapted to all conventional microscopes
- PC interface for remote control
