epMotion® 5073t
epMotion 5073m NGS MultiCon
Eppendorf 3D-MagSep Technology
Automated Liquid Handling
New innovative functions
And what's more, you can now save tips using the reuse tips feature.
epMotion 5073 with EasyCon touch controller & CleanCap
epMotion 5073m or M5073 with MultiCon and CleanCap
MultiCon_2021
epMotion 5075
Institute of Biotechnology, Prague, Czech
Videos not loading, because cookies have been rejected. Change your
Institute for Pathology, TU Munich, Germany
Videos not loading, because cookies have been rejected. Change your
Esteve, Barcelona, Spain
Videos not loading, because cookies have been rejected. Change your
Institute for Pathology, TU Munich, Germany
Videos not loading, because cookies have been rejected. Change your
Esteve, Barcelona, Spain
Videos not loading, because cookies have been rejected. Change your
Institute of Biotechnology, Prague, Czech
Videos not loading, because cookies have been rejected. Change your
Product Information

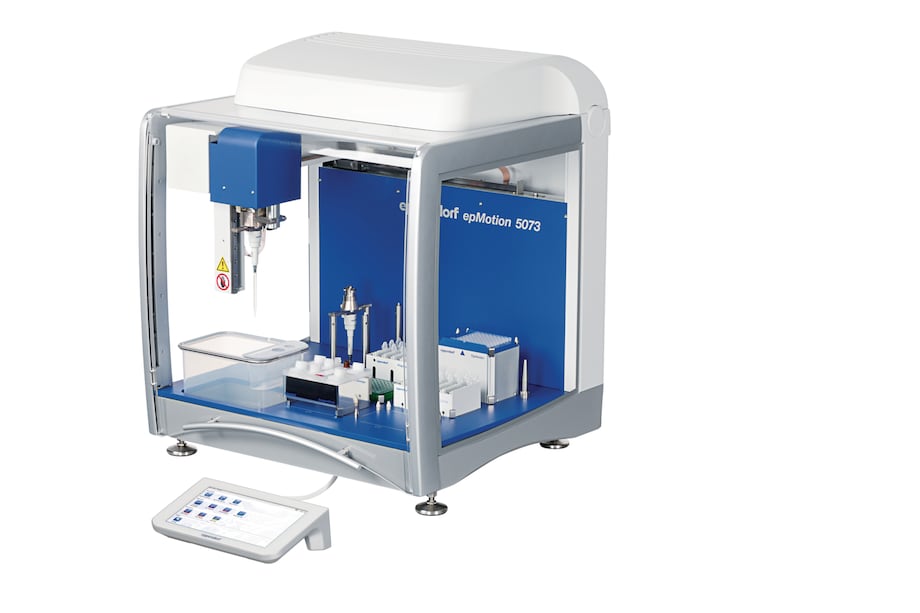

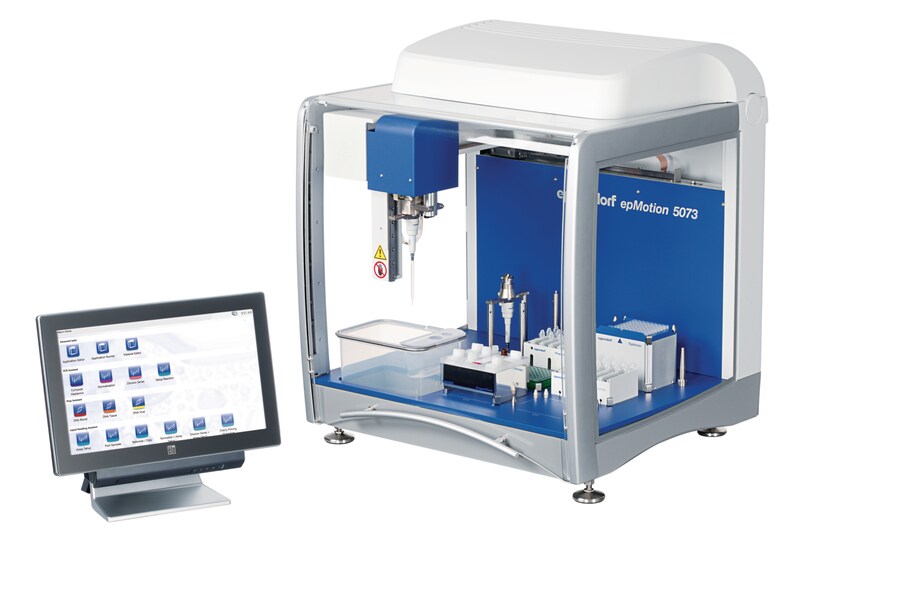

The 5073t automated liquid handling system is ideally suited for nucleic acid purification (NAP), but is flexible for other liquid handling tasks. The integrated ThermoMixer module is ideal for magnetic bead based purifications, saving hands-on time and improving the reproducibility of results. It is controlled by MultiCon PC and can be configured with CleanCap.epMotion 5073m
You will find additional download material at the bottom of this page
Single Devices (1)
Accessories (83)
epServices (13)
1 Single Devices
Catalog no.
5073000345
|
Show more Products
Product Information
Technical Data
Applications
Features

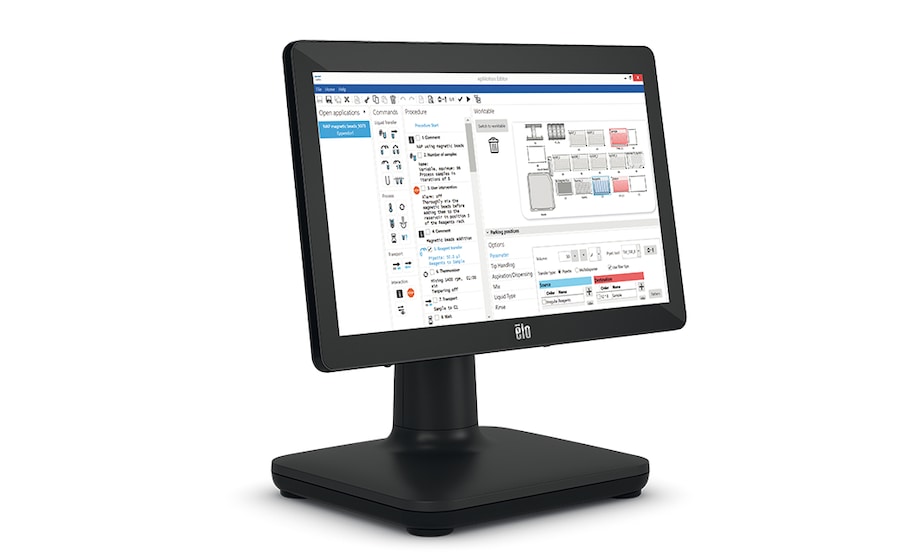

The epMotion 5073t: 2 systems in one liquid handling robot. First, a perfect system for automated nucleic acid purification. The MultiCon PC provide simple operation. Secondly, it is a flexible system for automating time-consuming and complex pipetting procedures with the epBlue™ software, making routine Liquid Handling tasks easier than ever. The pipetting procedure is more precise, reproducible and fully standardized, making your workplace more ergonomic and safer.
Reuse Tips Feature
The new epMotion systems can reuse tips as e.g. economical choice for multiple wash steps
of the same well. Here special epT.I.P.S. Motion SafeRack tips are recommended. Pipette tips
will be placed back into the position of the box they were removed from. Returned tips will be reused within an application for the same source vessel.
• Individual compartments in rack to avoid cross-contamination between used tips
• Available as standard and PCR clean quality for 50, 300 and 1000 µL

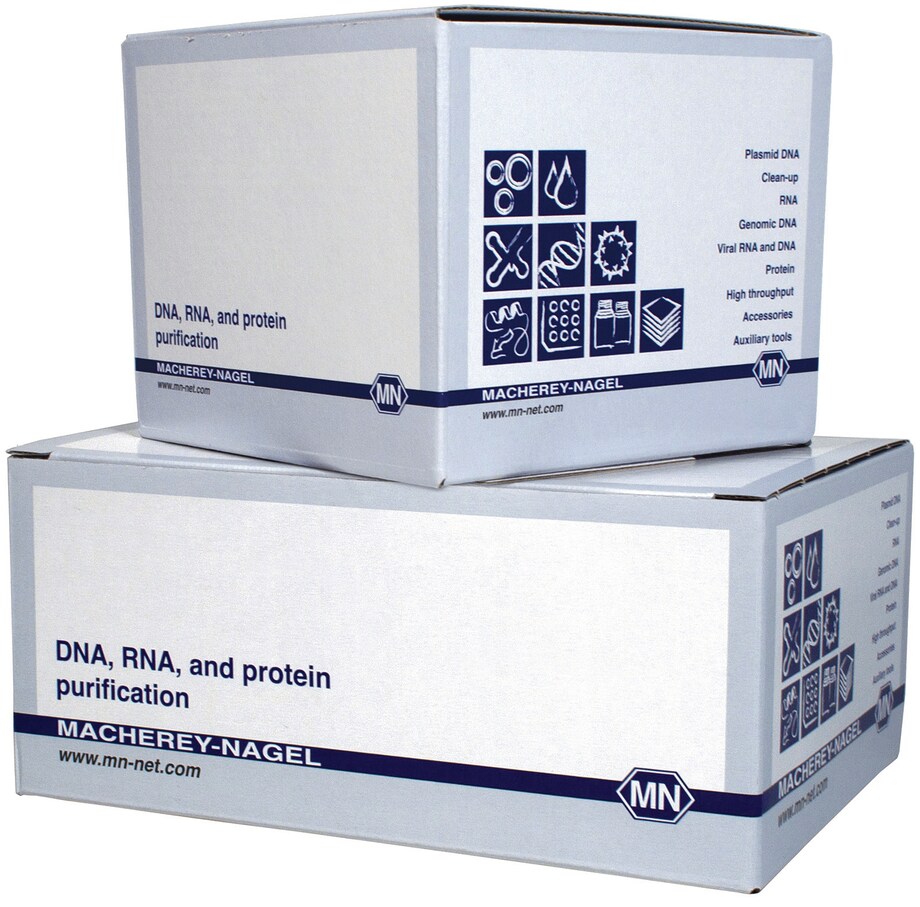

Recommended reagents kits
Free-up your time for scientific work – Whether your sample is tissue, blood, plant or virus, we recommend usage of the respective MACHEREY-NAGEL NucleoMag® Tissue / Blood 200 µL / Plant or Virus Kit. The kits are designed for rapid automated small-scale preparation of highly pure nucleic acids based on robust magnetic bead separation, using the epMotion M5073, 5073m or 5075m. Preprogrammed methods for three kits are available, so that you can start right away. Benefit from minimal hands-on-time with ready to use reagents, and easy software assistants. Get superior yield and purity versus manual or other automation methods.
• Adsorption of DNA / RNA in the presence of chaotropic salts (hydrate shell of DNA / RNA is reversibly removed)
• High-salt / ethanolic washing steps to remove contaminants
• Low-salt or water elution (hydrate shell is recovered, DNA is released from the beads)
• Vendor-qualified methods for epMotion
• Order the kits directly at MACHEREY-NAGEL
NucleoMag® are registered trademarks of MACHEREY-NAGEL GmbH & Co. KG, Düren, Germany.
Read More
Read Less
| Specifications | epMotion® 5073t |
|---|
| Application | Nucleic acid purification |
| Volume range | 0.2 µL – 1 mL |
| Power supply | 100 – 240 V ±10 %, 50 – 60 Hz ±5 % |
| Max. power consumption | 600 W |
| Dimensions (W × D × H) | 65 × 61 × 77 cm / 26 × 24 × 30 in |
| Weight w/o accessories | 57 kg / 125.6 lb |
| Pipetting type | Air cushion system |
| Autoclavable | yes (tools) |
| Gripper carrying capacity | 1,200 g |
|
Dispensing tool1)2) |
|
| Random measurement error (1 µL) | ≤3 % |
| Systematic measurement error (1 µL) | ±5 % |
| Random measurement error (25 µL) | ≤0.6 % |
| Systematic measurement error (25 µL) | ±1.5 % |
| Random measurement error (50 µL) | ≤0.4 % |
| Systematic measurement error (50 µL) | ±1.2 % |
| Random measurement error (150 µL) | ≤0.4 % |
| Systematic measurement error (150 µL) | ±1 % |
| Random measurement error (1,000 µL) | ≤0.15 % |
| Systematic measurement error (1,000 µL) | ±0.7 % |
|
1)in pipetting mode, free jet, without pre-wetting, with distilled water, at 20 °C 2)See Eppendorf Application Note 168 for typical pipetting performance |
|
|
Eppendorf ThermoMixer® |
|
| Max. load | 1.000 g |
| Temperature range | 15 °C below RT to 95 °C |
| Speed | 300 – 2,000 rpm |
| Mixing period | 5 s – 120 min |
- DNA and RNA purification
- PCR & qPCR set-up
- Sample or reagent transfer
- Sample mixing and tempering
- Assay set-up
- Media change and other cell culture applications
- NGS library preparation
- 6 ANSI/SLAS microplate positions
- Intuitive, drag and drop based software
- Optical sensor 1) for detecting liquids, labware, tips

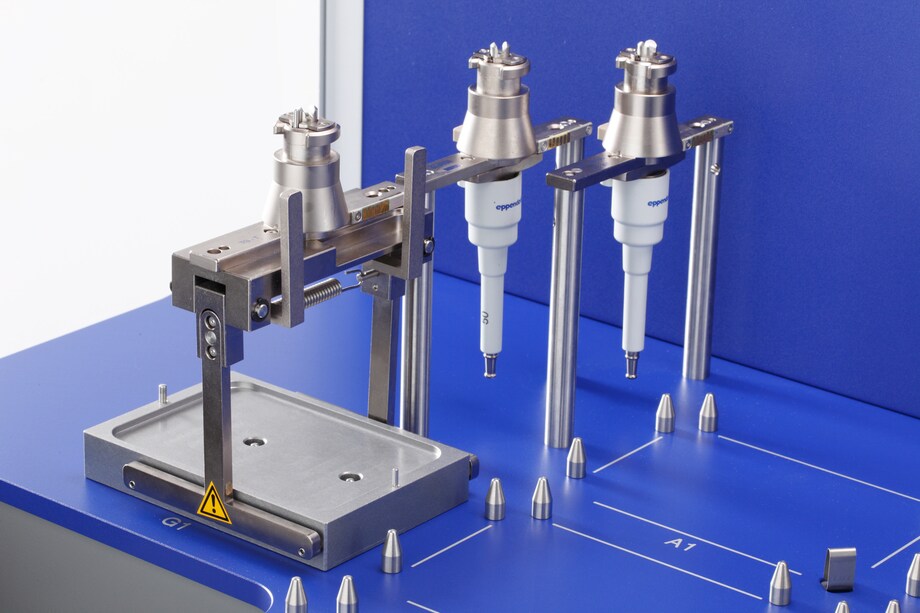

- Automatic replacement of 3 pipetting tools
- Volume range of 1 to 1,000 µL for maximum pipetting accuracy
- Integrated Eppendorf ThermoMixer with 2DMix-Control technology for mixing and tempering all at one location
- Calibrated 1-channel and 8-channel pipetting tools
- Optional UV lamp and HEPA filter system for decontamination and clean air conditions
- Compatible with tubes (0.2 to 50 mL) and microplates with up to 384 wells
- Integrated LEDs for visual feedback of system status like idle, run in progress or run finished
Downloads: epMotion® 5073t
Webinar: Liquid Handling for NGS Workflows
Generating high-quality NGS libraries is a labor-intensive process that requires experience, precision, and accuracy. In this webinar, you will learn:
- The basics of NGS workflows & expert advice on getting started with NGS in your lab
- Practical tips and tricks for manual and automated liquid handling
- How Eppendorf epMotion can help you achieve reliable and reproducible sequencing results
