epMotion® 5075t

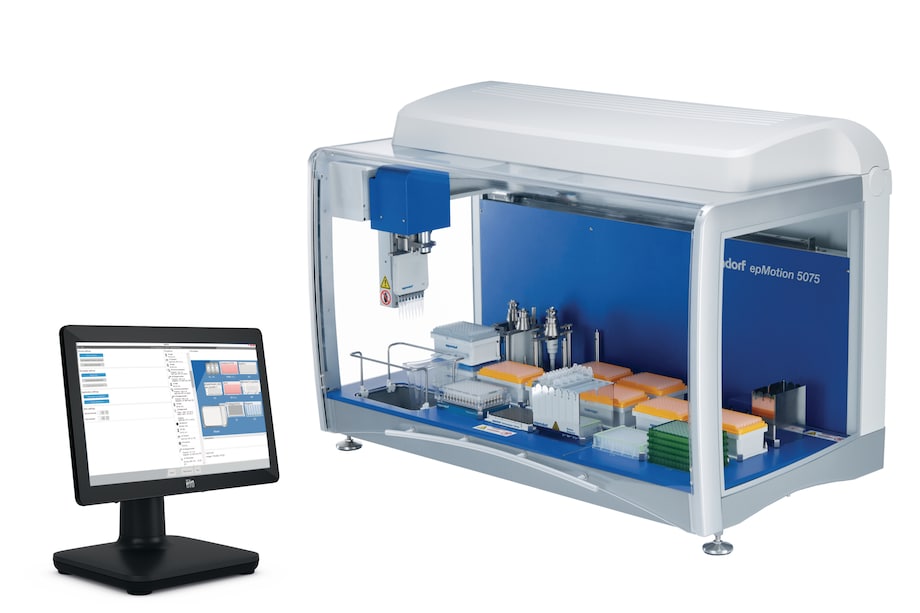

epMotion 5075 with MultiCon

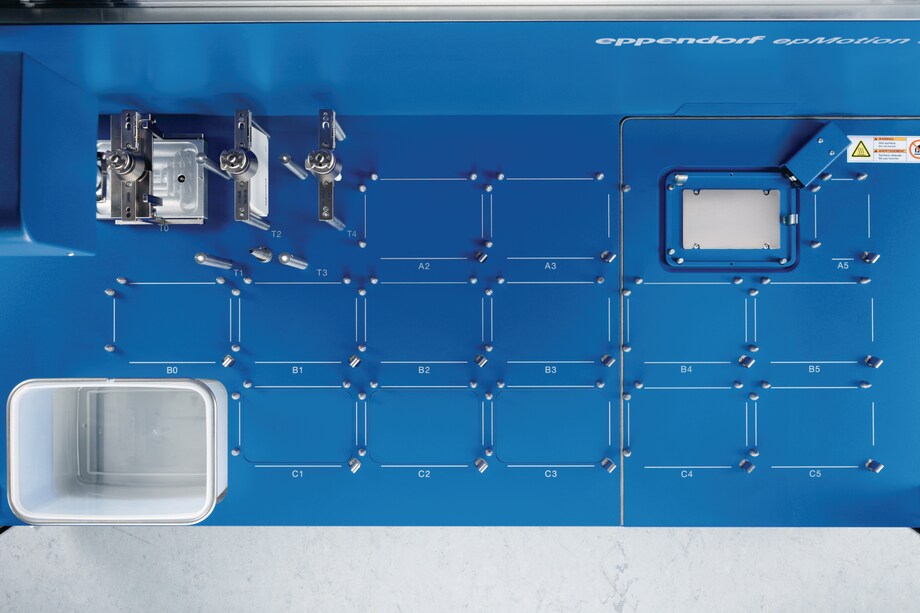

topview 5075t, thermal mixing module, no accesories, empty deck

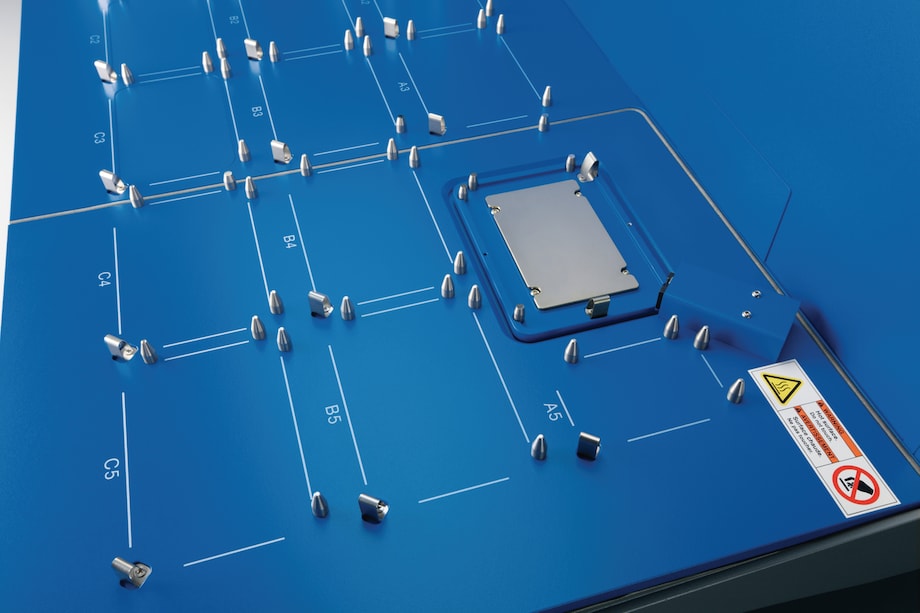

sideview 5075t, thermal module, no accessories, empty deck

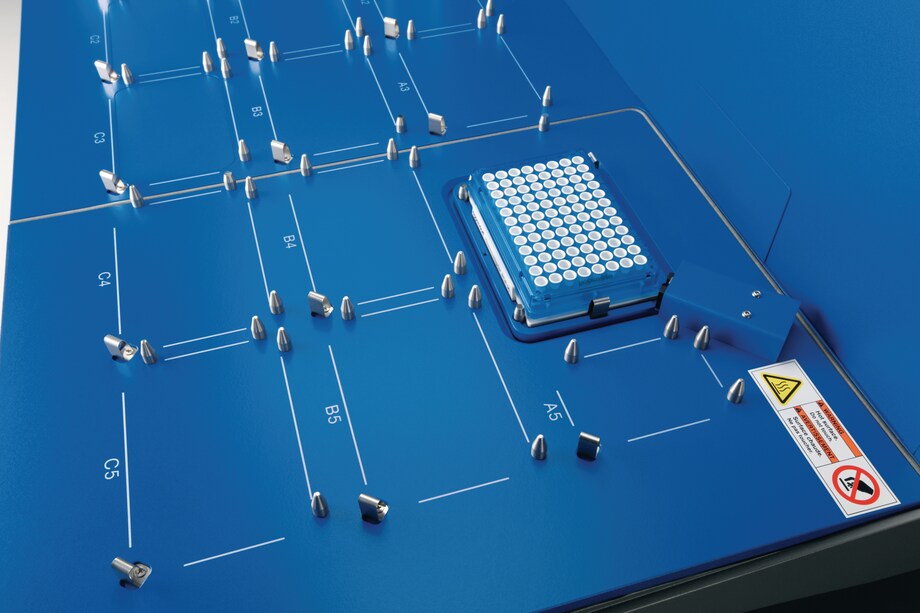

sideview 5075t with plate on thermal module
epMotion 5075
Institute for Pathology, TU Munich, Germany
Videos not loading, because cookies have been rejected. Change your
Esteve, Barcelona, Spain
Videos not loading, because cookies have been rejected. Change your
Institute of Biotechnology, Prague, Czech
Videos not loading, because cookies have been rejected. Change your
Product Information
Get unique mixing performance with excellent temperature control to guarantee complete, dependable, and reproducible assay results.The epMotion 5075t liquid handling robot combines high flexibility with 14.5 deck positions and integrated Thermomixer. It is controlled by MultiCon industry PC and can be configured with CleanCap and up to 2 thermal modules.
epMotion 5075t
You will find additional download material at the bottom of this page
Sets (1)
Accessories (75)
epServices (13)
1 Sets
Catalog no.
5075000302
|
Show more Products
Product Information
Technical Data
Applications
Features
The epMotion 5075t automated liquid handling system includes an integrated Eppendorf ThermoMixer® module to mix, heat or cool samples and reagents. The module can be loaded and unloaded with the gripper and pipetting to the mixer is possible before and after mixing steps. The Eppendorf ThermoMixer module is fully software controlled enabling pipetting onto other worktable positions while the mixer is in operation.
ThermoMixer®
Fully integrated ThermoMixer with 2DMix-Control improves yield and application results,
e.g. resuspending bacteria pellets or magnetic beads. Peltier element for heating and cooling
of sample and/or reagents. The following epMotion versions are equipped with ThermoMixer capability, M5073, 5075t, 5075m, 5075vt. A ThermoMixer upgrade product is available
for epMotion 5075l, 5075v, and successor versions 5075LH and 5075VAC.
Sample preparation for Next Generation Sequencing (NGS)
involves extensive manual processing that can be subject to human error. Eppendorf epMotion Liquid Handling systems are important tools for labs that want to significantly increase throughput and consistency of results. The automation of labor-intensive steps in NGS sample prep, like pipetting, mixing, temperature control and magnetic separation brings about a standardized and streamlined process, with significantly reduced hands-on time and minimization of human errors.
epMotion automation method for Illumina’s TruSeq Stranded Total RNA & TruSeq Stranded mRNA library preparation kits for Next Generation Sequencing are “Illumina Qualified”.
Gripper Tool
The gripper tool allows transport of labware on the worktable of epMotion 5073 or 5075 versions. It is loaded by automatic tool exchange and can be programmed easily in the software. The stacking of up to 5 plates is possible.
Read More
Read Less
| Specifications | epMotion® 5075t, basic device |
|---|
| Application | Nucleic acid purification |
| Heating rate | 5 °C/min, on the block |
| Volume range | 0.2 µL – 1 mL |
| Power supply | 100 – 240 V ±10 %, 50 – 60 Hz ±5 % |
| Max. power consumption | 700 W |
| Dimensions (W × D × H) | 107 × 61 × 67 cm / 43 × 24 × 27 in |
| Weight w/o accessories | 87 kg / 191.8 lb |
| Pipetting type | Air cushion system |
| Autoclavable | yes (tools) |
| SLAS/ANSI positions | 14.5 |
| Gripper carrying capacity | 1,200 g |
|
Eppendorf ThermoMixer® |
|
| Cooling rate | 3 °C/min, on the block, above RT |
| Max. load | 1,000 g (2.2 lb) |
| Temperature range | 15 °C below RT to 95 °C |
| Speed | 300 rpm – 2,000 rpm |
| Mixing period | 5 s – 120 min |
|
Dispensing tool1)2) |
|
| Random measurement error (1 µL) | ≤3 % |
| Systematic measurement error (1 µL) | ±5 % |
| Random measurement error (25 µL) | ≤0.6 % |
| Systematic measurement error (25 µL) | ±1.5 % |
| Random measurement error (50 µL) | ≤0.4 % |
| Systematic measurement error (50 µL) | ±1.2 % |
| Random measurement error (150 µL) | ≤0.4 % |
| Systematic measurement error (150 µL) | ±1 % |
| Random measurement error (1,000 µL) | ≤0.15 % |
| Systematic measurement error (1,000 µL) | ±0.7 % |
|
1)in pipetting mode, free jet, without pre-wetting, with distilled water, at 20 °C 2)See Eppendorf Application Note 168 for typical pipetting performance |
|
|
Thermal module |
|
| Temperature range | 0 °C - 110 °C |
| Heating rate | 9 °C/min |
| Cooling rate | 4 °C/min |
|
Detector |
|
| Optical sensor | Contact-free recognition of fill level, inserted tools, labware, tip types and quantities |
|
Conductor – X, Y, Z Positioning |
|
| Random measurement error | ±0.1 mm |
| Systematic measurement error | ±0.3 mm |
- Bead applications with mixing and tempering
- Sequencing and PCR clean-up
- Nucleic acid purification
- Cell disruption
- Immunoassays
- Next Generation Sequencing library preparation
- Same as 5075l, plus
- Integrated Eppendorf ThermoMixer with 2DMix-Control technology
- Temperature control range 15 °C below RT to 95 °C
- Automatic fixing of labware for mixing up to 2,000 rpm
- Pipetting at standard positions during shaking
- 14.5 deck positions, 14 SLAS/ANSI plus small position for special reagent reservoir rack (3 reservoirs)
- 2 thermal module options
- Integrated LEDs for visual feedback of system status like idle, run in progress or run finished
