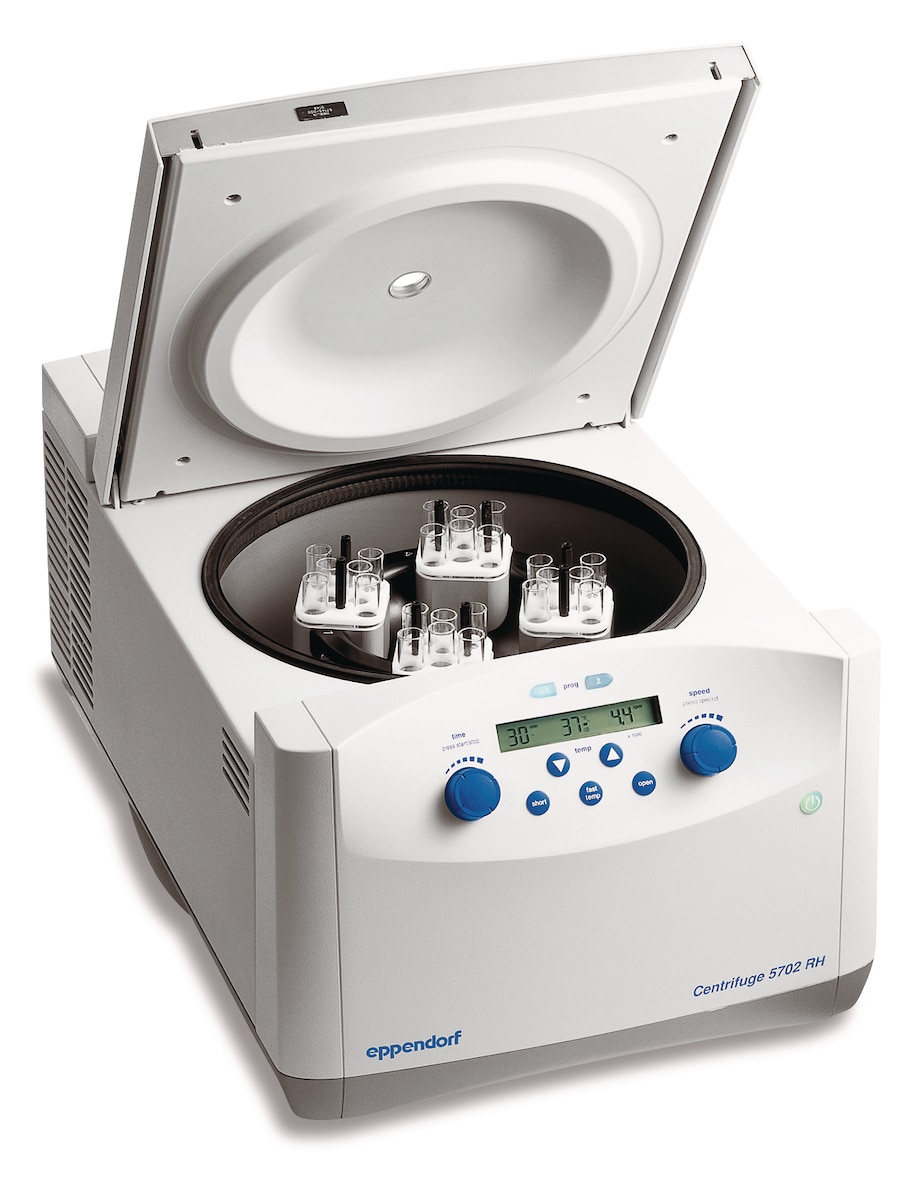

Centrifuge 5702 RH (EU-IVD)

  • IVD

Catalog No. 5704000091

Product Information

  • rotary knobs, refrigerated/heated, without rotor
  • 230 V/50 – 60 Hz (CN)

You will find additional download material at the bottom of this page

Technical Data

Specifications 5702 RH
Max. RCF
Max. RCF with fixed-angle rotor
Max. RCF with swing-bucket rotor
Speed 100 – 4,400 rpm (100 rpm steps)
Product type Centrifuges
Rotors available
Max. capacity
Acceleration time1)
Deceleration time1)
Timer 0 – 99 min, with continuous run function
SOFT brake function yes
Noise level <46 dB(A) with Rotor A-4-38
Power supply 230 V, 50 – 60 Hz
Max. power consumption
Dimensions (W × D × H) 38 × 58 × 27 cm / 15 × 15 × 10.6 in
Product weight 35 kg / 77.4 lb
Height (with open lid) 60 cm / 23.4 in
Cooling refrigerated/heated
Temperature range -9 °C to 42 °C

Max. capacity

Conical tubes 20 × 15 mL/ 4 × 50 mL
Blood collection tubes 36 × 13 mm/ 30 × 16 mm

1)Acceleration and deceleration times may vary depending on rotor, load and voltage version.
