epMotion® Dispensing tools
Single- and multichannel dispensing tools for epMotion

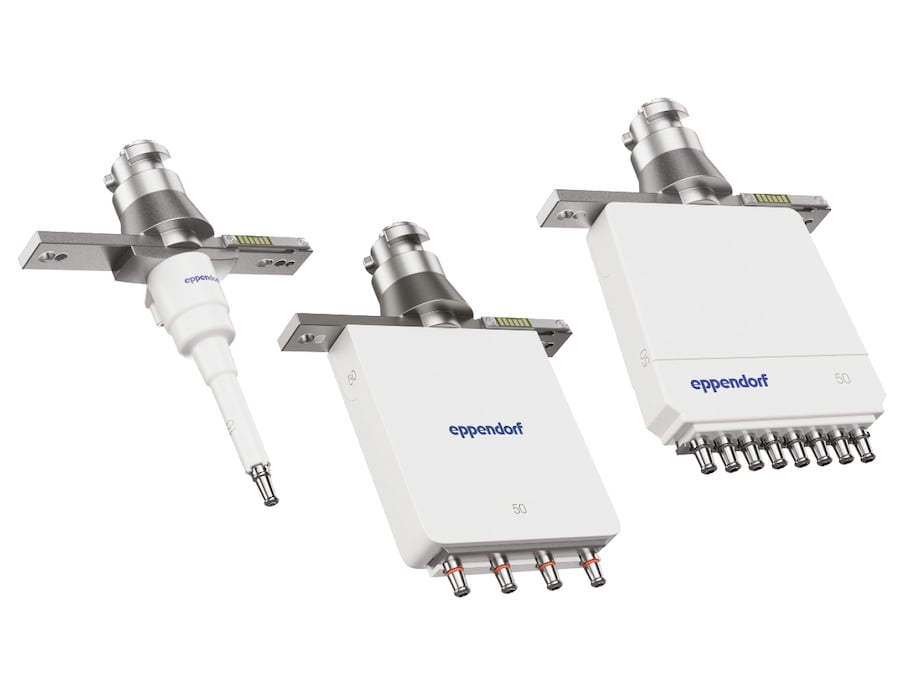

Single- and Multichannel dispensing tools next to each other
Product Information
The dispensing tools for the epMotion Liquid Handling workstations are precision instruments for pipetting and dispensing of a variety of different liquids. They are available as single channel as well as multichannel tools, and they cover the volume range between 0.2 and 1,000 µL.You will find additional download material at the bottom of this page
Products (12)
12 Products
|
|
|
|
|
|
|
|
|
|
Show more Products
Added to Your Cart
Product Information
Technical Data
Features
Product Information
The dispensing tools for the epMotion Liquid Handling workstations are precision instruments for pipetting and dispensing of a variety of different liquids. They are available as single channel as well as multichannel tools, and they cover the volume range between 0.2 and 1,000 µL.
Technical Data
| Specifications | TS 10 | TS 50 | TS 300 | TS 1000 | TM 10-8 | TM 50-8 | TM 300-8 | TM 1000-8 |
|---|
| Number of channels | 1-channel | 1-channel | 1-channel | 1-channel | 8-channel | 8-channel | 8-channel | 8-channel |
| Volume range | 0,2 – 10 µL | 1,0 – 50 µL | 20 – 300 µL | 40 – 1.000 µL | 0,2 – 10 µL | 1,0 – 50 µL | 20 – 300 µL | 40 – 1.000 µL |
| Testing Volume |
0.2 µL 1 µL 5 µL 10 µL |
1 µL 5 µL 25 µL 50 µL |
20 µL 30 µL 150 µL 300 µL |
40 µL 100 µL 500 µL 1000 µL |
1 µL 5 µL 10 µL |
1 µL 5 µL 25 µL 50 µL |
20 µL 30 µL 150 µL 300 µL |
40 µL 100 µL 500 µL 1000 µL |
| Rel. systematic error |
±25 % ±5 % ±2.4 % ±1.2 % |
±15 % ±5.0 % ±1.5 % ±1.0 % |
±4.0 % ±3.0 % ±1.0 % ±0.6 % |
±5.0 % ±2.0 % ±1.0 % ±0.7 % |
±7.5 % ±2.5 % ±2.0 % |
±25.0 % ±5.0 % ±2.0 % ±1.2 % |
±10.0 % ±10.0 % ±2.5 % ±1.5 % |
±6.0 % ±3.0 % ±1.5 % ±0.8 % |
| Abs. systematic error |
±0.05 µL ±0.05 µL ±0.12 µL ±0.12 µL |
±0.15 µL ±0.25 µL ±0.375 µL ±0.5 µL |
±0.8 µL ±0.9 µL ±1.5 µL ±1.8 µL |
±2.0 µL ±2.0 µL ±5.0 µL ±7.0 µL |
±0.075 µL ±0.125 µL ±0.02 µL |
±0.25 µL ±0.25 µL ±0.5 µL ±0.6 µL |
±2.0 µL ±3.0 µL ±3.75 µL ±4.5 µL |
±2.4 µL ±3.0 µL ±7.5 µL ±8.0 µL |
| Abs. random error |
±0.04 µL ±0.03 µL ±0.025 µL ±0.025 µL |
±0.05 µL ±0.15 µL ±0.15 µL ±0.2 µL |
±0.5 µL ±0.45 µL ±0.6 µL ±0.9 µL |
±0.6 µL ±1.0 µL ±1.0 µL ±1.5 µL |
±0.05 µL ±0.1 µL ±0.06 µL |
±0.1 µL ±0.25 µL ±0.3 µL ±0.3 µL |
±0.8 µL ±1.05 µL ±1.2 µL ±1.5 µL |
±1.0 µL ±1.5 µL ±1.5 µL ±1.5 µL |
| Rel. random error |
±19.8 % ±3 % ±0.5 % ±0.25 % |
±5.0 % ±3.0 % ±0.6 % ±0.4 % |
±2.5 % ±1.5 % ±0.4 % ±0.3 % |
±1.5 % ±1.0 % ±0.2 % ±0.15 % |
±5 % ±2 % ±0.6 % |
±10.0 % ±5.0 % ±1.2 % ±0.6 % |
±4.0 % ±3.5 % ±0.8 % ±0.5 % |
±2.5 % ±1.5 % ±0.3 % ±0.15 % |
Features
- Highest accuracy from 200 nL to 1,000 µL
- For various types of liquids
- 1- and 8-channel dispensing tools
Downloads: epMotion® Dispensing tools
Does a service carried out by Eppendorf meet the GMP requirement?
Eppendorf offers global certification services which comply with FDA 21 CFR Part 11, EU GMP Annex 11, GLP and GAMP®5 to ensure a consistent, standardized operation. We also enable an uncomplicated validation from the implementation to the shutdown by providing support for the installation und operational qualifications (IQ/OQ) of the device and with the software. The entire qualification is documented in detail and the operator’s personnel is qualified and certified in intensive training sessions.
Read More
Read Less
How much are the different epMotion service programs?
The costs depend on the model and service that is performed. Please contact your local Eppendorf Service.
Read More
Read Less
How often do dispensing tools need to be calibrated?
As part of his test equipment monitoring process, the operator determines the frequency of the calibration as well as the quantity of the testing volume and the number of measurements for each testing volume. This may vary depending on how often the device is used, by how many operators it is used, the aggressivity of the liquids used and the maximum permissible errors defined by the operator. The dispensing tools of your device will display after 200,000 runs that an inspection is recommended. However, there should be at least 1 calibration per year.
Read More
Read Less
How often does my epMotion need to be serviced?
The need for service depends on how intensively the device is used and if you are working in a regulated field with special service demands. However, we recommend to have it serviced at least once a year.
Read More
Read Less
How often does the OQ need to be carried out for an epMotion?
The company is responsible for technical checks of devices. Eppendorf recommends regular device qualifications depending on the intensity of use, however, they should be carried out at least once a year.
Read More
Read Less
What do you need to look out for before carrying out a service?
The device needs to be decontaminated first. The device must be freely accessible and all samples removed from the device.
Read More
Read Less
What is IQ or OQ and what do I need them for?
Installation and operational qualification; the IQ documents that the device has been delivered and installed correctly. The OQ checks the correct functioning of a device. IQ/OQ ensure that your quality management requirements are met and that your device operates properly and in accordance with the manufacturer’s specifications.
Read More
Read Less
What types of service programs are available for epMotion?
The available service programs can be found under the respective instrument in the Service & Support / Maintenance and Certification Services section.
Read More
Read Less
What types of training or online training do you offer to enable me to improve my skills?
Please visit the Eppendorf webpage about the Eppendorf Training Center (https://www.eppendorf.com/training or contact your local Eppendorf Service for further information and a quotation.
Read More
Read Less
Which consumables should be replaced at regular intervals?
All three XYZ flex cables should be replaced at least once per year if the machine is used daily.
Read More
Read Less
Who is my local service contact?
Please contact your local Eppendorf Service Team. You find the contact data on our homepage (www.eppendorf.com) or in the information materials.
Read More
Read Less
Why can the dispending tool be calibrated without the user unit ?
The epMotion dispensing tool is calibrated with the help of the epMotion Tool Holder. The electronic parameter to control the tools of the epMotion are always the same in all epMotion units. Therefore all epMotion dispensing tool can be calibrated on different units than the user unit. The only exceptions are the TS10 and TM10 dispensing tool. They can only be calibrated with units controlled by epBlue Version 40.5.
Read More
Read Less
Why do the dispensing tools of my epMotion need to be calibrated?
The dispensing tools are precision devices. Servicing and calibration at regular intervals ensure a consistently high precision of the results. We provide documentation in support for GLP to assist you.
Read More
Read Less
Why should I have my epMotion serviced at regular intervals?
To ensure the optimum performance and precision of your device. This also enables the early detection of any defects which can then be corrected easily. Only precise and accurate devices ensure successful liquid transfers!
