Centrifuge 5702 RH

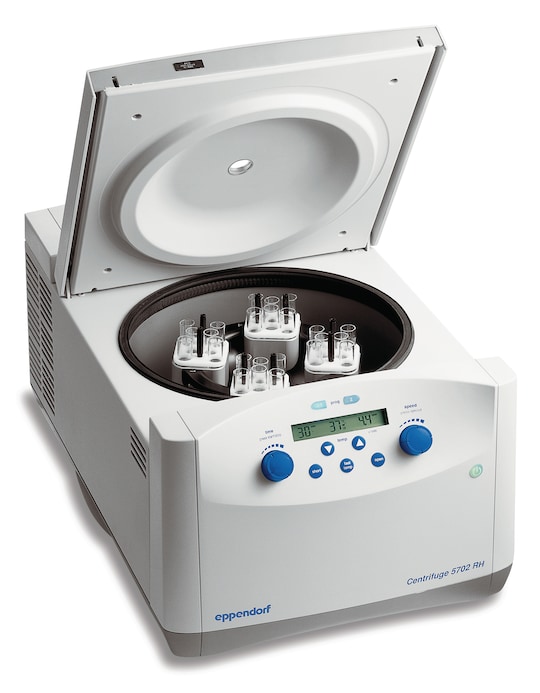

Centrifuge 5702 RH open
Medical Device registration in Malaysia: This Medical Device is registered under Act 737. This webpage content is intended for Healthcare Professionals only, not for general public. Click here for Malaysia Medical Device Authority (MDA) product registration listing.
Product Information
- rotary knobs, refrigerated/heated, without rotor
- 230 V/50 – 60 Hz (GB)
You will find additional download material at the bottom of this page
Technical Data
Technical Data
| Specifications | 5702 RH |
|---|
| Max. RCF | 3000 × g |
| Max. RCF with fixed-angle rotor | 1900 × g |
| Max. RCF with swing-bucket rotor | 3052 × g |
| Speed | 100 – 4,400 rpm (100 rpm steps) |
| Product type | Centrifuges |
| Rotors available | 6 |
| Max. capacity | 4 × 100 mL |
| Acceleration time1) | ≤19 s |
| Deceleration time1) | ≤29 s |
| Timer | 0 – 99 min, with continuous run function |
| SOFT brake function | yes |
| Noise level | <46 dB(A) with Rotor A-4-38 |
| Power supply | 230 V, 50 – 60 Hz |
| Max. power consumption | 380 W |
| Dimensions (W × D × H) | 38 × 58 × 27 cm / 15 × 15 × 10.6 in |
| Product weight | 35 kg / 77.4 lb |
| Height (with open lid) | 60 cm / 23.4 in |
| Cooling | refrigerated/heated |
| Temperature range | -9 °C to 42 °C |
|
Max. capacity |
|
| Conical tubes | 20 × 15 mL/ 4 × 50 mL |
| Blood collection tubes | 36 × 13 mm/ 30 × 16 mm |
1)Acceleration and deceleration times may vary depending on rotor, load and voltage version.
