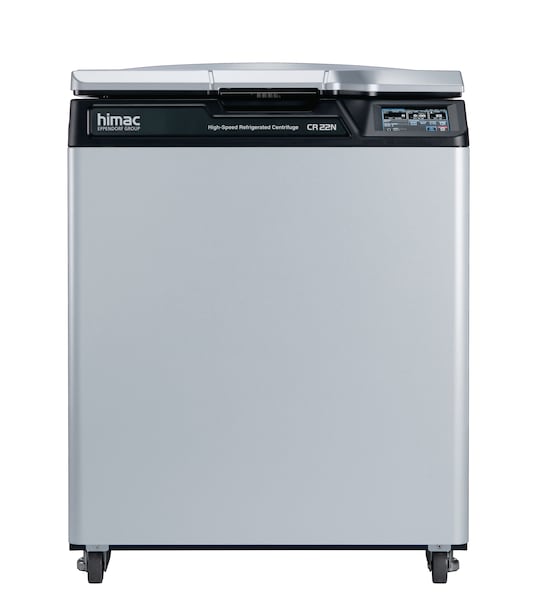

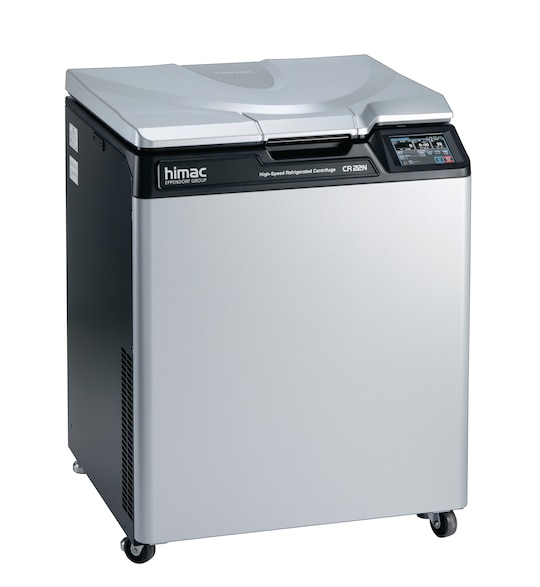

Centrifuge CR22N - High-Speed Centrifuge
Product Information
With high speeds up to 58,700 x g (Rotor R27A) and a capacity of up to 6 L per run, Centrifuge CR22N is the optimal solution for your everyday centrifugation tasks. A selection of 4 different kits are available for Centrifuge CR22N containing the rotor and consumables tailored to your applicational needs including various swing-bucket and fixed-angle rotors.Centrifuge CR22N
You will find additional download material at the bottom of this page
Products (1)
Sets & Bundles (1)
epServices (8)
Rotors (33)
1 Products
|
Show more Products
Added to Your Cart
Product Information
Technical Data
Features
Product Information
Whether your work requires harvesting of biomass in volumes of up to 6 L per run, pelleting of cells, subcellular organelles or larger viruses, or extraction, precipitation, concentration and purification of nucleic acids in up to 50 mL tubes, the high-speed Centrifuge CR22N is the optimal solution to support your everyday centrifugation tasks.

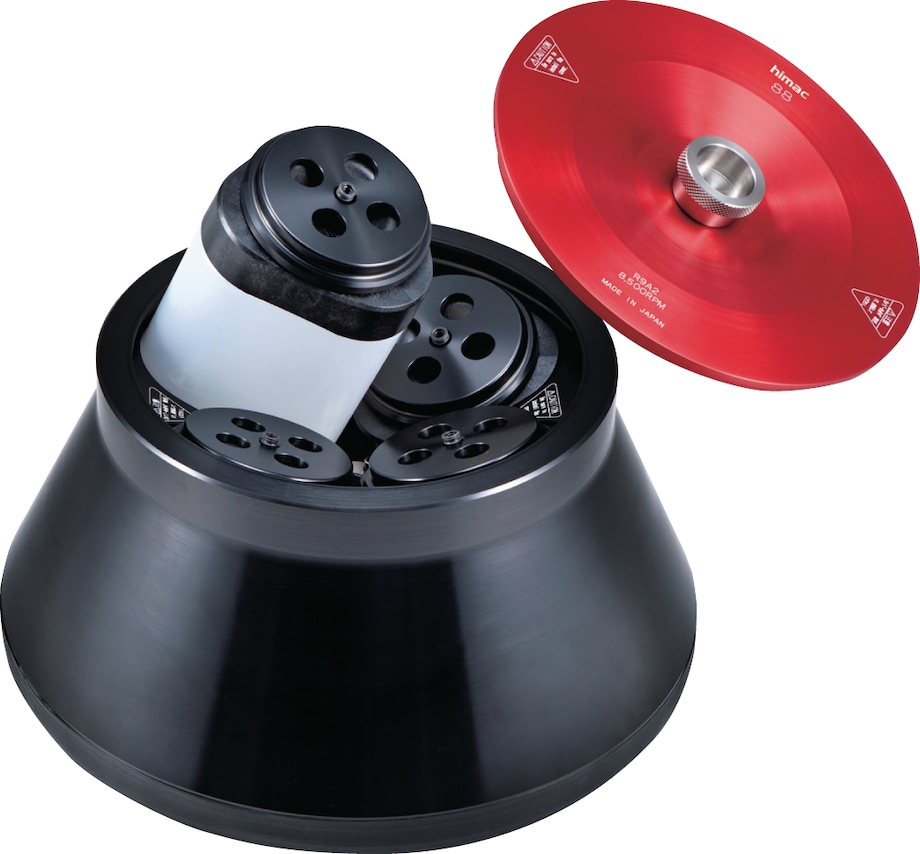

The innovative 4 x 1.5 L Rotor R9A2 in combination with our unique triangular 1.5 L bottles helps to speed up the biomass harvesting workflow by reducing the amount of bottles that need to be handled. The large touch operation panel with up to 30 programs provides quick and easy operation. The user management and documentation function supports customers working in a regulated environment. Additionally, the self-locking rotor system with immediate rotor recognition and sophisticated safety features ensure safe and convenient everyday operation of the device.
The innovative 4 x 1.5 L Rotor R9A2 in combination with our unique triangular 1.5 L bottles helps to speed up the biomass harvesting workflow by reducing the amount of bottles that need to be handled. The large touch operation panel with up to 30 programs provides quick and easy operation. The user management and documentation function supports customers working in a regulated environment. Additionally, the self-locking rotor system with immediate rotor recognition and sophisticated safety features ensure safe and convenient everyday operation of the device.
Are you tired of time-consuming handling steps during the centrifugation protocol?
Our 1.5 L triangular bottle gives you great flexibility: No minimum filling level means you can spin samples between 0 mL – 1.5 L without worrying about bottle stability or the need to fill up your sample with additional media. No need to switch bottles or rotors anymore!
Additionally, the option to spin down up to 6 liters in just 4 instead of 6 bottles reduces time-consuming handling steps such as switching to smaller rotors and precooling them, but also decanting the supernatant, resuspension of the pellet as well as cleaning the bottles after the centrifugation run.
Read More
Read Less
Technical Data
Specifications | CR22N |
---|
Max. RCF | 58700 × g |
Speed | 300 – 22000 rpm |
Max. capacity | 4 × 1,500 mL |
Number of programs | 30 programs, with RCF(g) / g x sec function |
Noise level | 64 dB(A) |
Interfaces | USB port (operating history can be exported via USB port) |
Power supply | 230 V, 50/60 Hz |
Max. power consumption | 3200 W |
Dimensions (W × D × H) | 700 × 760 × 915 mm |
Footprint (dimensions w/o front panel, WxD) | 700 x 760 mm |
Product weight | 260 kg |
Cooling | refrigerated |
Separation example | High centrifugation speed of up to 58,700 x g with fixed-angle rotor R27A (22,000 rpm) |
Acceleration/Deceleration mode |
Acceleration: 9 modes Deceleration: 9 modes with coasting |
Drive unit | Induction Motor (Inverter) |
Refrigerator | Rotary inverter driven compressor (Refrigerant : R410A) |
Keypad | Touch sensitive LCD panel |
Safety devices | Door interlock, overspeed detection, imbalance detection, rotor cover detection, over-temperature detection |
Power requirement | Single phase: AC200/208/220/230/240 V ±10%, 30 A (50/60 Hz) |
Variable Deceleration Slope | yes (beside DCL mode, moderate deceleration or free coast is selectable) |
User lockout function | yes |
Operating Log Management |
LAN port: factory option or on-site modification PC and optional "himac LogManager Ver. 5.0 for Windows® (Network Edition)" is required Supporting GMP/GLP |
Economy mode | yes |
Continuous flow rotor | no |
Vacuum system | no |
Features
- High centrifugation speed of up to 58,700 x g with fixed-angle rotor R27A (22,000 rpm)
- Maximum capacity of 6 L with 4 x 1.5 L unique triangular bottles
- Temperature range: -20 °C to 40 °C
- All rotors maintain 4 °C at maximum rotor speed (except R27A)
- High-resolution 5.7 inch color LCD with 2 different language options (EN/JPN)
- User management and documentation function
- Rotor cover detection sensor prevents rotors from spinning without rotor covers
- Automatic rotor ID detection and self-locking rotor system
- Variable deceleration slope function to protect sensitive samples (at <7,000 rpm)
- Biosafety Option (micro filter modification)
