Product Information

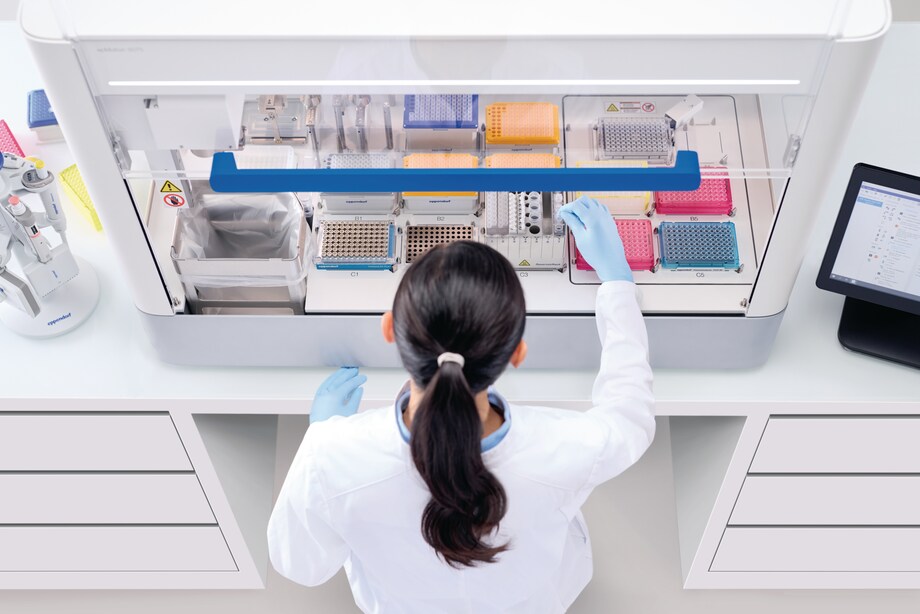

The Eppendorf epMotion 5073 is a series of flexible automated pipetting systems designed to make your lab life easier. These automated liquid handlers are perfectly suited for PCR and qPCR setup, nucleic acid purification as well as low-throughput NGS library preparation. At the same time, they retain the flexibility of an open platform, being suitable for a wide range of automated liquid handling applications. The epMotion 5073 series automates and simplifies traditionally complex, labor-intensive pipetting tasks, saving you time and improving the reliability and reproducibility of your results.
IF Design Award
You will find additional download material at the bottom of this page
Sets (3)
Services (13)
Accessories (98)
3 Sets
Catalog no.
5073000110
|
Catalog no.
5073000111
|
Catalog no.
5073000112
|
Show more Products
Read More
Read Less
| Specifications | epMotion® 5073 | epMotion® 5073 | epMotion® 5073 |
|---|
|
Eppendorf ThermoMixer® |
|||
| Speed | − | 300 – 2,000 rpm | 300 – 2,000 rpm |
| Time range setting | − | 30 s – 120 min | 30 s – 120 min |
| Max. load | − | 1,000 g / 2.2 lb | 1,000 g / 2.2 lb |
| Temperature range | − | 15 °C below RT to 95 °C | 15 °C below RT to 95 °C |
| Heating rate | − | 5 °C/min | 5 °C/min |
| Cooling rate above RT | − | 3 °C/min | 3 °C/min |
| Cooling rate below RT | − | 1 °C/min | 1 °C/min |
|
Thermal module |
|||
| Max. number of modules | 1 | − | − |
| Time range setting | 1 – 120 min | − | − |
| Temperature range | 0 °C – 110 °C | − | − |
| Heating rate | 9 °C/min | − | − |
| Cooling rate | 4 °C/min | − | − |
| Volume range | 0.2 µL – 1 mL | 0.2 µL – 1 mL | 0.2 µL – 1 mL |
| Operating mode | automation | automation | automation |
| Autoclavable | yes (tools) | yes (tools) | yes (tools) |
| Power supply | 100 – 240 V, 50 – 60 Hz | 100 – 240 V, 50 – 60 Hz | 100 – 240 V, 50 – 60 Hz |
| Consumables | epT.I.P.S. motion tips as racks or reload | epT.I.P.S. motion tips as racks or reload | epT.I.P.S. motion tips as racks or reload |
| Max. power consumption | 400 W | 400 W | 400 W |
| Dimensions (W × D × H) | 68 × 62 × 81 cm / 27 × 25 × 32 in | 68 × 62 × 81 cm / 27 × 25 × 32 in | 68 × 62 × 81 cm / 27 × 25 × 32 in |
| Product weight | 86 kg / 190 lb | 93 kg / 205 lb | 93 kg / 205 lb |
| SLAS/ANSI positions | 6 | 6 | 6 |
The epMotion® 5073 liquid handling sytems are built for reliable and reproducible results. Their main features are listed below.
