How many speed-controlled pumps do the DASGIP bioreactors feature?

Up to eight peristaltic speed-controlled pumps per vessel offer continuous flow rates from 0.3 mL/h - 5 L/h. Each pump can be operated independently. Two different pump head sizes for the multi pump modules DASGIP MP4 and MP8, fitting various tube sizes make the DASGIP multi pumps a flexible and accurate solution.

How are DASGIP vessels agitated?

DASGIP bioreactors feature powerful overhead drives with agitation speeds ranging 30 – 1,600 rpm. The DASGIP TC4SC4 controls temperature and agitation in up to four bioreactors. Users can individually define each outlet set-point as well as choose from different operation modes (e.g. continuous or interval agitation).

Do stainless steel components bear any risk of corrosion?

As it is highly resistant to most laboratory chemicals, stainless steel, e.g. 1.4571 (AISI-316Ti), 1.4404 (AISI-316L), is used for wetted parts in DASGIP Bioreactor Systems. A passive coating made of chrome oxide protects the steel from oxidizing agents. Despite these protective properties, corrosion can still occur in extreme situations such as mechanical surface damage or when the parts come in contact with concentrated acids or alkaline solutions. An indication of corrosion can be discoloration that is visible even after a thorough cleaning (ultrasonic bath with an approved stainless steel cleaning solution).

text.skipToContent text.skipToNavigation

DE | EUR

Es konnten keine Ergebnisse gefunden werden.

Such-Empfehlungen

Produkt Familien

Alle Produkt Familien anzeigen ()

Artikel

Alle Artikel anzeigen ()

Inhalte

Alle Inhalte anzeigen ()

SciVario^® twin Benchtop Bioreactors for Cell Culture

DASGIP Benchtop Bioreactors for Cell Culture with medium

Produktinformationen

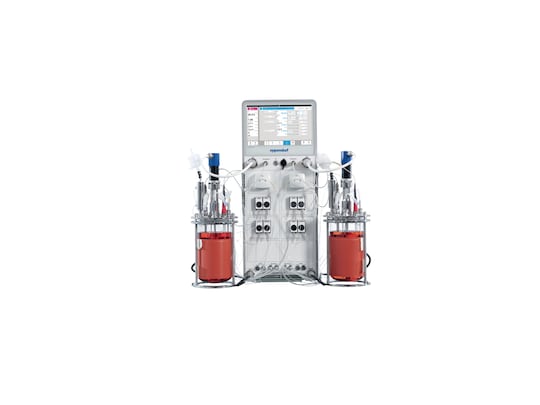

The SciVario twin benchtop bioreactors for cell culture are fully instrumented glass bioreactors for cell culture research and process development at bench scale. They are compatible with the SciVario twin bioreactor system. Two variants cover a working volume range from 750 mL to 3.8 L.

Weitere Produktinformationen anzeigen

Dokumente zum Download finden Sie weiter unten auf der Seite

Produkte (2)

epServices (4)

Zubehör (15)

2 Produkte

DASGIP^®Gefäß

DR03C, 750 mL – 2,7 L, Tauchrohr, Überkopfantrieb
Schrägblattrührer

Weitere Produktdetails ...

Katalog-Nr. 76DR03C

DASGIP^®Gefäß

DR04C, 850 mL – 3,8 L, Tauchrohr, Überkopfantrieb
Schrägblattrührer

Weitere Produktdetails ...

Katalog-Nr. 76DR04C

Mehr Produkte anzeigen

Zum Warenkorb hinzugefügt

Produktinformationen

Applikation

Eigenschaften

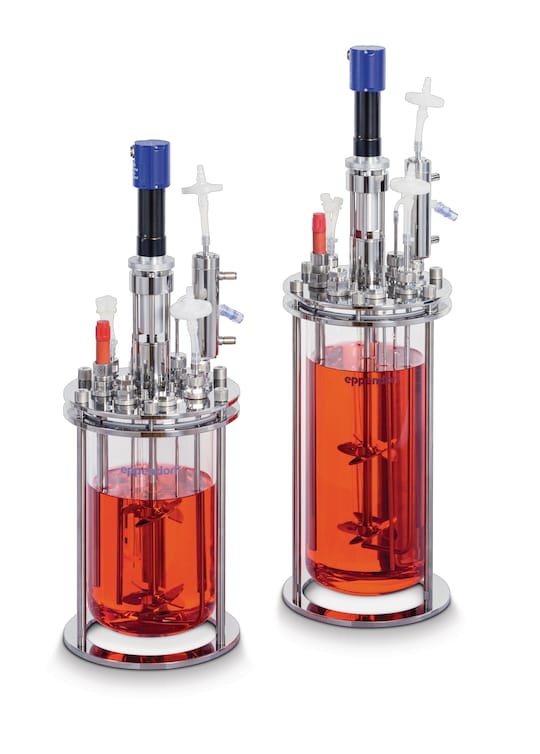

The SciVario twin benchtop bioreactors for cell culture are autoclavable glass vessels featuring a stainless-steel head plate with 16 industry-standard ports, pitched-blade impellers, and a direct overhead drive to ensure optimal conditions for research and process development. They offer highest flexibility regarding instrumentation and setup. All stainless-steel parts are laser-labelled with part numbers and have certificates of origin available.

Downloads: SciVario^® twin Benchtop Bioreactors for Cell Culture

Broschüre

One for All

SciVario^® twin bioprocess control system

PDF 4.0MB

Englisch

Leistungsdatenblatt

SciVario Benchtop Bioreactor Cell Culture 2.5 L (Spec Sheet)

Technical Data, Features, Order No

PDF .2MB

Englisch

Leistungsdatenblatt

SciVario Benchtop Bioreactor Cell Culture 3.5 L (Spec Sheet)

Technical Data, Features, Order No

PDF .2MB

Englisch

Broschüre

You Develop. We Support.

Discover our bioprocess service offerings

PDF 3.9MB

Englisch

Sie könnte auch interessieren

BioBLU^® c Single-Use Bioreactors

Für Zellkulturanwendungen .Arbeitsvolumenbereich von 100 mL – 40 L.

SciVario^® twin

Bioreaktorsystem im Labormaßstab für die parallele Verarbeitung von zwei Bioreaktoren. Für eine Bioprozessentwicklung in Arbeitsvolumen von bis zu 40 L. Einfach aufrüstbar zur Anpassung an sich verändernde Nutzeranforderungen.
