At which speed is vortexing possible?

You can use either the touch vortexer at 3,500 rpm, or vortexing can be set to continuous by setting the mixing rate and mixing period to a range between 300 and 3,000 rpm. In continuous vortexing mode vortexing at mixing frequencies between 2,000 rpm and 3,000 rpm may occasionally activate the automatic imbalance detector.

During continuous vortexing the speed dropped suddenly and "TOO FAST" appeared in the display, why?

MixMate's automatic imbalance sensor, which prevents plates and tubes from jumping out during the mixing process, may be occasionally initiated during continuous vortexing at speeds between 2,000 and 3,000 rpm. Safety when mixing plates is of utmost priority, therefore this feature cannot be technically altered.

MixMate suddenly reduced my mixing rate and "TOO FAST" appeared in the display, why?

MixMate's automatic imbalance sensor determined irregularities during the mixing process and, for safety reasons reduced the mixing rate to prevent the plate or tubes from jumping out of the holder. This may be attributed to one or more of the following This may be attributed to one or more of the following reasons: - Plates are not correctly seated, or they do not comply with the SBS format - tube holders have not been properly inserted, or they have been unequally loaded - the mixing rate has been set too high for the weight of the mixing material - In continuous vortexing mode vortexing at frequencies between 2,000 rpm and 3,000 rpm may occasionally activate the automatic imbalance detector.

My tube holders rattle when I use MixMate, why?

The tube holders may not have been properly inserted into the Universal Holder. Check to make sure that the lugs on the rear side of the tube holder are properly latched into the holes of the Universal Holder.

I would like to check the accuracy of the mixing rate. How do I do it?

We recommend using a calibrated stroboscope or a calibrated flash lamp with a systematic error of <- 0.1 %.

Can MixMate be used in automated systems or integrate into an automated pipetting system?

No, because MixMate is not equipped with an interface.

Can I program MixMate to run different mixing steps sequentially?

No. MixMate is not programmable.

Is MixMate able to heat or cool samples?

No, MixMate is a mixing device. For tempering (heating, cooling) of plates or tubes we recommend the Eppendorf Thermomixers or Eppendorf ThermoStat plus.

Can MixMate be operated in an incubator at 37°C?

Yes, MixMate can be operated at ambient temperatures of 2 – 40°C and a relative air humidity of 10 – 75 %.

Can MixMate be operated in a cold room at 4°C?

Yes, MixMate can be operated at ambient temperatures of 2 – 40°C and a relative air humidity of 10 – 75 %. A note of caution: Condensate formation may damage electronic components! After using MixMate in a cold room, wait one hour before reconnecting the device to the power supply.

Will using MixMate heat my sample?

MixMate's ventilation concept enables the installed fans to take in cool air from above while dissipating the heated air from the bottom of the device. Thus, waste heat does not come into contact with the sample material. Internal tests have shown that even after 3 hours of continuous operation at 3,000 rpm, a sample will be heated by no more than max. 2-3°C.

Can I switch off the acoustic signal during operation, or at least turn down the volume?

You can either deactivate the signal tone (VOL0) or choose between three different volume settings (VOL1 – VOL3). To do so use the arrow key to select "M-1 VOL" in the menu. After pressing the "Menu/Enter" button you can edit the settings.

Can I use the Eppendorf IsoRack (of the IsoTherm-System) on MixMate?

Yes, the Eppendorf IsoRacks for 1.5/2.0 ml and 0.5 ml micro test tubes can be used in combination with the 1.5/2.0 ml or 0.5 ml tube holders.

Can I control MixMate using a computer?

No. MixMate is not equipped with an interface, therefore it cannot be controlled by external devices.

Can I order the tube holders individually as replacement parts?

Yes, to do so please contact your local Eppendorf dealer. The catalog numbers for the tube holders are: - Tube Holder PCR 96: 5353 040.113 (Eppendorf North America: 022674005) - Tube Holder 0.5 ml: 5353 040.121 (Eppendorf North America: 022674021) - Tube Holder 1.5/2.0 ml: 5353 040.130 (Eppendorf North America: 022674048)

Can I order the vortex mat as a replacement part?

Yes, to do so please contact your local Eppendorf dealer. The order number for the vortex mat is: 5353 863.004 (Eppendorf North America: 022674105)

Can I vortex several micro test tubes simultaneously?

Yes, during continuous vortexing: Set the required mixing rate (300 – 3,000 rpm) and mixing period (15 s – 99.5 h; continuous) using the keypad, and then start the vortexing process using the "start/stop" key. You can use the complete rubber mat in the MixMate's Universal Holder for vortexing. Touch-vortexing mode is inactivated during continuous vortexing.

Can 6-, 12-, 24-, or 48-well cell culture plates be used on MixMate?

Yes, cell culture plates can be used on MixMate – as long as they comply with the SBS Standard for Microplates, and they can be mixed at a minimum mixing rate of 300 rpm.

Can semi-skirted PCR plates be used with MixMate?

Yes, with the aid of the Tube Holder PCR 96, semi-skirted PCR plates can also be fitted onto MixMate.

Can unskirted PCR plates be used with MixMate?

Yes, with the aid of the Tube Holder PCR 96, unskirted PCR plates can also be used.

During mixing of my 384-well PCR plate air-bubbles have formed at the bottom of the wells. How can I prevent this?

The applied mixing frequency is too high for your experimental setup. To determine the optimal mixing frequency for your experiment please proceed as follows: Reduce the mixing frequency by approx. 500 rpm and insert a PCR plate with samples at the bottom of the wells (no bubbles). Increase the mixing frequency gradually until bubbles are formed. The optimal mixing speed is 50 – 100 rpm below this value.

Is the mixing rate reduced when MixMate is fully loaded?

No. Even at maximum capacity, the mixing rate is not affected.

Are MixMate and the tube holders resistant to UV radiation?

They have a limited resistance against UV light. Whereas the proportion of UV light within daylight does not harm the material, exposure to special UV lamps will damage the material and lead to discoloration. Therefore, we do not recommend disinfecting MixMate.

I understand that skirted 96-well PCR plates can be directly inserted onto MixMate. But can I also use the Tube Holder PCR 96 for this?

Yes, 96-well skirted PCR plates can be mixed both directly – using MixMate's Universal Holder – or with the aid of the Tube Holder PCR 96.

Despite using the soft keys, lid wetting has occurred, why?

Could depends on one or more of the following factors: - tube or plate size - filling volume - properties of the sample material (e.g., buffer composition, viscosity, density, etc.) The parameters of the program keys do not cover all known or possible tube or plate geometries as well as sample properties. For some applications, it may be possible to optimize these parameters. For example, the mixing frequency can be too high and cause cover wetting. In such case, the present parameters can adapt but unfortunately not safed at the program key. Further information can be found in the Operating Manual.

Despite the imbalance sensor, my plate suddenly jumps out of MixMate, why?

Possible reasons: - The plate does not comply with the SBS Standard for Microplates. - The plate is extremely worn or deformed.

What does the term 2DMix-Control technology describe/stand for?

2DMix-Control technology describes MixMate’s ability to mix small sample volumes from 5 µl to 2 ml in various plate and tube formats quickly and in a controlled manner. It has to do with the way MixMate’s features for efficient and controlled mixing interplay, resulting in: - Generation of sufficient mixing energy: MixMate’s orbital mixing movement at a high mixing speed (max. 3,000 rpm) and a relatively large mixing radius (1.5 mm) generates enough mixing energy (analogous to g-force in centrifuges) to mix even the smallest volumes efficiently. - Minimized loss of mixing energy: During MixMate’s development, special attention was paid to reducing inherent vibration. Its smooth operation combined with its reliable stability ensures that all the mixing energy is available for mixing and not wasted through transmission of vibrations to the device or its surroundings. - Controlled transmission of energy from the device to the sample: Minimizing vertical movements enable a plane, 2-dimensional (2D) mixing stroke. This, in conjunction with the reliable plate and tube holders, prevents uncontrolled chaotic movements and allows all formats to be held securely, even at high mixing frequencies.

What other special features does MixMate have in addition to 2DMix-Control technology?

In addition to the 2DMix-Control technology, which enables fast and controlled mixing of small volumes from 5 µl to 2 ml, MixMate also provides these safety & convenience benefits: - 3-in-1 format: Mixes plates, tubes and vortexes - Soft keys, make it easier to configure the optimum mixing parameters - Digital display for maximum reproducibility of experimental conditions - Automatic imbalance detection, prevents plates from jumping out - Remarkably silent: noise level <50 dB(A)

What is the SBS Standard for Microplates?

The Society for Biomolecular Sciences ( SBS ) collaborates with other institutions to develop standards for micro test plates – the objective is to standard the various formats for easier automation. For use with MixMate the footprint of plates should meet the following specifications: - Rectangular plate - Length = 127.76 mm +/- 0.5 mm; width = 85.48 mm +/- 0.5 mm - The footprint must be continuos and uninterrupted around the base of the plate.

Which soft keys should I use for deepwell plates?

Due to the fact that deepwell plates accommodate a variety of different vessel geometries (based on height of plate, maximum fill volume, shape of the wells) and can be used with different fill volumes, it is not possible to make a general statement about the most suitable soft keys or the ideal mixing parameters for them. Basic rules are: - DWP (96-well) with 2,000 µl, 1,000 µl and 500 µl filling volumes: - With most solutions try setting a mixing rate of 1,400 rpm (soft key 1.5/2.0), as many of these DWP have a mixing rate similar to 1.5 ml and 2.0 ml micro test tubes. - For resuspension of bacteria pellets try a mixing rate of 2,000 rpm, approx. 1 min. - DWP (384-well) - Try mixing at 2,000 rpm; when using the 384 soft key visually check the process to ensure the mixing period is sufficient for complete mixing.

Which tubes can I mix with MixMate?

MixMate can be used to mix 0.2 ml PCR tubes, and PCR strips as well as 0.5 ml, 1.5 ml and 2.0 ml micro test tubes (using the tube holders included in the delivery package).

Which norms and standards are fulfilled by MixMate?

The MixMate fulfills the following directives and standards (as of April 2006): 73/23/EWG, EN 61010-1, EN 61010-2-051, 89/336/EWG, EN 55011/B, EN 61000-6-1, EN 61000-3-2, EN 61000-6-6, EN 61326, 98/79/EG, EN 14971, EN 591, EN 980)

What are the ideal parameters for resuspension of bacteria pellets?

The compact bacteria pellets require a relatively high mixing energy for efficient resuspension. Internal tests have shown that bacteria pellets with buffer volumes like those used for plasmid isolation undergo resuspension within max. 1 min at 2,000 rpm – without any lid wetting.

Which plates can be used on MixMate?

All plate formats that comply with the SBS Standard for Microplates, for example: MTPs (up to 384-well), 96- and 384-well PCR plates (skirted, semi-skirted, unskirted), deepwell plates (up to 384-well), cell culture plates (6-, 12-, 24-, 48-, 96- and 384-wells).

For which plates/tubes have the soft keys been optimized?

- 384 (15 s/2,000 rpm): MTP (384-well) - PCR 384 (15 s/2,600 rpm): PCR plates (384-well) - 96 (30 s/1,000 rpm): MTP (96-well) - PCR 96/0.5 (30 s/1,650 rpm): PCR plates (96-well), 0.2 PCR tubes and PCR strips, 0.5 ml micro test tubes - 1.5/2.0 (1 min/1,400 rpm): 1.5 and 2.0 ml micro test tubes.

If fluid is inadvertently spilled on MixMate, should I worry about it entering the device?

MixMate is designed such that small quantities of fluid cannot penetrate the device. If fluid is spilled on it, disconnect the mains plug and clean the device thoroughly; follow the instructions in the Operating Manual accordingly.

How can I disinfect MixMate and its tube holders?

To avoid a short-circuit follow these safety instructions: - Before cleaning or disinfecting the housing, switch off MixMate and disconnect the mains plug/power cord. - Do not allow any liquids to penetrate the inside of the housing. - Only reconnect the the device to the power supply and turn it back on when it is completely dry. To disinfect MixMate we recommend using alcohol (e.g., ethanol, isopropanol) or alcohol-containing disinfectants. Do not use UV radiation, as this will damage the plastics.)

How can I remove DNA contamination from MixMate and the tube holders?

Please follow the instructions within the operating manual. To avoid a short-circuit follow these safety instructions: - Before cleaning or disinfecting the housing, switch off MixMate and disconnect the mains plug/power cord. - Do not allow any liquids to penetrate the inside of the housing. - Only reconnect the device to the power supply and turn it back on when it is completely dry. If necessary, remove the Universal Holder per the operating manual instructions and wipe off DNA contamination with a moistened tissue. Change tissues repeatedly. The Universal Holder, vortex mat and tube holders should then be rinsed with running water, followed by distilled water. For stubborn DNA contamination, the different parts can be cleaned by wiping off with commercially available DNA decontamination solutions.

To which chemicals are MixMate and the tube holders resistant?

For questions regarding the resistance against chemicals, radiation and temperature please contact the Eppendorf Application Hotline (support@eppendorf.com).

How can I determine the ideal mixing parameters for my application?

We recommend dyeing the solution with the highest density or the highest viscosity with a color (e.g., Patent Blue V, Ponceau 4R), and then pipetting it as the last component on the bottom of the tube. You should try various mixing rates to determine the speed at which the sample material can be mixed quickly without any lid wetting. After several mixing periods (e.g., 5 s, 15 s, 30 s, 45 s, 1 min, 3 min) check your sample visually to ensure that the color has been completely distributed throughout. You can use the soft key settings as a reference/starting point when optimizing the mixing rate.

What does it mean when the display flashes on and off with two adjacent circles alternating with the mixing parameters?

The display flashes on and off symbolized by the two adjacent circles “oo” in order to draw your attention to the fact that the mixing period has been set to infinite.

Why does the control-LED go out when I change the parameters of a soft key?

Because the altered values no longer match the parameters assigned to that soft key the control-LED light goes out. This prevents any confusion bewteen the mixing parameters.

Why do you recommend that I mix deepwell plates at max. 2,000 rpm?

Depending on geometry and filling volume, DWPs might have a high balance point and heavy weight, respectively. Due to safety reasons, the imbalance detector may be activated at mixing frequencies above 2,000 rpm and automatically reduce the mixing frequency (to avoid plates jumping out of the Universal Holder).

Why do you recommend mixing at max. 2,000 rpm when using the tube holders?

Because of their high balance point and their maximum capacity (e.g., Tube Holder 1.5/2.0 ml), the imbalance detector might be activated at mixing frequencies above 2,000 rpm. This automatically reduces the mixing frequency to prevent the tubes and the tube holder from jumping out of the Universal Holder.

How can MixMate mix samples in a controlled manner, without any lid wetting?

The interplay of several factors that influence on the mixing motion has been optimized, in particular: The minimization of vertical motion, the operating smoothness and as well as the sturdy plate/tube holders. All serve to prevent any uncontrolled, chaotic movement and thus ensure an optimum transfer of mixing energy from the device to the sample. Still, the risk of any lid wetting is dependent on outside factors such as tube size, chosen mixing speed, filling volume and the properties of the sample material (e.g., buffer composition, viscosity, density), etc. To easily configure your optimum mixing parameters despite such variations, MixMate is equipped with five preprogrammed soft keys to enable fast and controlled mixing of various plate and tube formats in standard applications.

Why does the vortexer continue to run for approx. 2 seconds after relieving pressure on the vortex mat?

This 2-second overrun makes the vortexing process more ergonomic, because the vortex mat need not be pressed continuously to keep the vortexer running. It also eases the process of performing vortexing in several tubes successively.

text.skipToContent text.skipToNavigation

DE | EUR

Es konnten keine Ergebnisse gefunden werden.

Such-Empfehlungen

Produkt Familien

Alle Produkt Familien anzeigen ()

Artikel

Alle Artikel anzeigen ()

Inhalte

Alle Inhalte anzeigen ()

MixMate^®

Q: Can MixMate be used in automated systems or integrate into an automated pipetting system?

No, because MixMate is not equipped with an interface.

Q: Can I program MixMate to run different mixing steps sequentially?

No. MixMate is not programmable.

Q: Is MixMate able to heat or cool samples?

No, MixMate is a mixing device. For tempering (heating, cooling) of plates or tubes we recommend the Eppendorf Thermomixers or Eppendorf ThermoStat plus.

Q: Can MixMate be operated in an incubator at 37°C?

Yes, MixMate can be operated at ambient temperatures of 2 – 40°C and a relative air humidity of 10 – 75 %.

Q: Can MixMate be operated in a cold room at 4°C?

Yes, MixMate can be operated at ambient temperatures of 2 – 40°C and a relative air humidity of 10 – 75 %. A note of caution: Condensate formation may damage electronic components! After using MixMate in a cold room, wait one hour before reconnecting the device to the power supply.

Eppendorf MixMate mixer device with red PCR 384-well plate

Eppendorf MixMate Tube holder for 0.5 mL lab vessels for sufficient mixing

Eppendorf MixMate Tube holder PCR 96 for mixing PCR plates

Eppendorf MixMate Tube holder for 1.5/2.0 mL lab vessels

Eppendorf MixMate Tube Holder for 5/15 mL lab vessels, filled with 5 mL tubes

Eppendorf MixMate Tube Holder for 5/15 mL lab vessels, filled with 15 mL conical tubes

Eppendorf MixMate Tube Holder for mixing 25/ 50 mL lab tubes

Scientist puts plate on Eppendorf MixMate to mix samples

Lab scientist changes settings of Eppendorf MixMate instrument

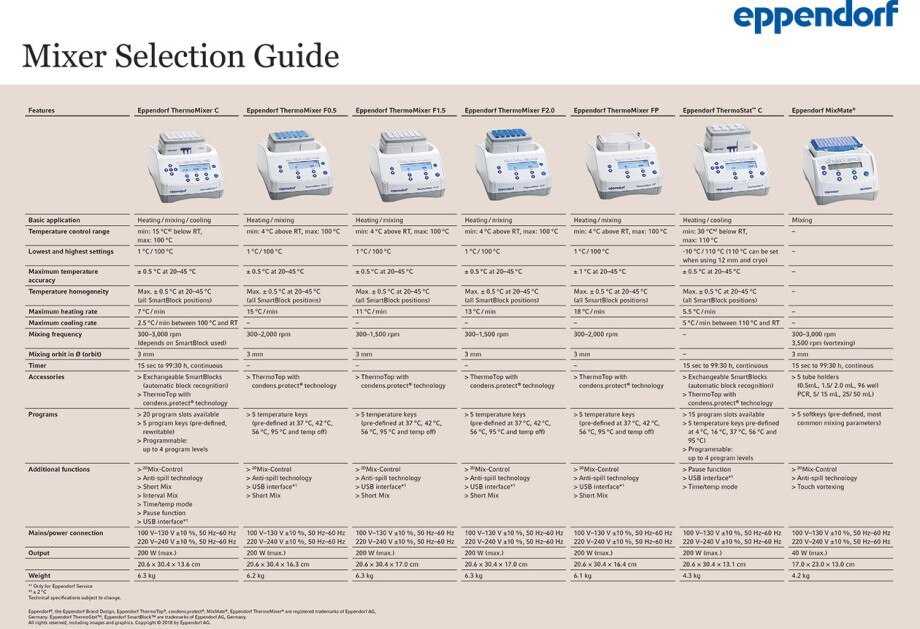

Eppendorf ThermoMixer and MixMate family

Eppendorf MixMate with PCR 96 tubeholder

Eppendorf Mixmate with semi-skirted PCR plate

Eppendorf MixMate mixing instrument to mix or vortex lab samples

Eppendorf mixing of small volume samples in the lab

Produktinformationen

Ist zügiges Mischen für Sie wichtig? Der 3-in-1-Mischer für Platten, Reaktionsgefäße und Vortexmischen. Mit diesem Hochgeschwindigkeitsgerät werden Ihre Proben in Sekunden gründlich durchmischt. Die herausragende ^2DMix-Control sorgt für optimale Durchmischung mit Anti-Spill-Technologie.

Weitere Produktinformationen anzeigen

Erfahren Sie mehr über Nachhaltigkeit bei Eppendorf und dazu, woran man ein nachhaltiges Mischgerät erkennt

Zur Demo-Anforderung

Dokumente zum Download finden Sie weiter unten auf der Seite

Produkte (6)

epServices (8)

6 Produkte

MixMate^®

Grundgerät ohne Gefäßhalter
230 V/50 – 60 Hz (EU)

Weitere Produktdetails ...

Anzahl

Verfügbarkeit prüfen

Katalog-Nr. 5353000510

Preis

2.120,00 €

Anfragen

Gefäßhalter 0,5 mL

für 24 × 0,5-mL-Reaktionsgefäße

Weitere Produktdetails ...

Anzahl

Verfügbarkeit prüfen

Katalog-Nr. 5353040121

Preis

113,00 €

Anfragen

Gefäßhalter 1,5/2,0 mL

für 24 × 1,5-mL- oder 2,0-mL-Reaktionsgefäße

Weitere Produktdetails ...

Anzahl

Verfügbarkeit prüfen

Katalog-Nr. 5353040130

Preis

113,00 €

Anfragen

Gefäßhalter 5/15 mL

für 8 konische 5/15-mL-Gefäße

Weitere Produktdetails ...

Anzahl

Verfügbarkeit prüfen

Katalog-Nr. 5353040148

Preis

113,00 €

Anfragen

Gefäßhalter 25/50 mL

für 4 konische 25-/50-mL-Gefäße

Weitere Produktdetails ...

Anzahl

Verfügbarkeit prüfen

Katalog-Nr. 5353040156

Preis

113,00 €

Anfragen

Gefäßhalter PCR 96

für 96 × 0,2 mL-PCR-Gefäße, PCR-Streifen oder 1 × 96-Well-PCR-Platte, semi-skirted oder unskirted

Weitere Produktdetails ...

Anzahl

Verfügbarkeit prüfen

Katalog-Nr. 5353040113

Preis

113,00 €

Anfragen

Mehr Produkte anzeigen

Zum Warenkorb hinzugefügt

Produktinformationen

Technische Daten

Applikation

Eigenschaften

Ist zügiges Mischen für Sie wichtig? Mischen Sie Ihre Proben in Sekundenschnelle vollständig und verlässlich. Ob Sie nun Platten (96 oder 384 Wells) oder Reaktionsgefäße verwenden, Ihre Proben werden optimal verarbeitet. Mit der integrierten, ergonomischen Vortexfunktion wird der MixMate zu Ihrem perfekten Laborassistenten. Durch den innovativen 2-Sekunden-Nachlauf kann die nächste Probe ohne Neustart gevortext werden.

Haben Sie es mit uneinheitlichen Mischergebnissen zu tun?

Verlässliches Mischen von Proben geht weit über einfaches Mischen hinaus, insbesondere dann, wenn es um Volumen im Bereich von Mikrolitern geht. Nachdem wir nun schon seit Jahrzehnten Mischgeräte herstellen, haben wir jetzt einen Weg gefunden, wie wir auch im Mikroliter bereich eine
verlässliche Mischleistung anbieten können:

^2DMix–Steuerung

Dank der einzigartigen ^2DMix–Steuertechnologie werden Flüssigkeiten mit kontrollierten, kreisförmigen Bewegungen durchmischt. Der MixMate hat genug Mischkraft, um auch schwierige Mischaufgaben zu bewältigen. Die meisten Proben können innerhalb nur einer Minute gründlich durchgerührt werden, unabhängig von der Form des Gefäßes und den Probeneigenschaften.

Benötigen Sie das Mischen kleiner Volumina?

Zeitraffer-Fotografie des kontrollierten Mischvorgangs im MixMate. Dank der einzigartigen^2DMixSteuertechnologie werden Flüssigkeiten mit kontrollierten, kreisförmigen Bewegungen durchmischt. Die kontrollierten Mischbewegungen verhindern Deckelbenetzung und Kreuzkontamination.

Verschiedene Proben zu verarbeiten?

Der MixMate bietet ausreichend Leistung auch für anspruchsvolle Mischvorgänge. Die meisten Proben werden in weniger als einer Minute komplett und reproduzierbar durchmischt, unabhängig von Gefäßformat oder Probeneigenschaft. Weitere Informationen finden Sie in der Application Note 130.

Sie benötigen verschiedene Gefäßformate?

Der MixMate kann mit verschiedenen Gefäßhaltern ausgestattet werden. Der Austausch der Halter erfolgt ohne Werkzeug.

Kämpfen Sie mit papierbasierter Dokumentation?

Das eLabJournal Electronic Lab Notebook bietet eine intuitive und flexible Lösung zur Dokumentation von Forschungsergebnissen und zur Nachverfolgung von Forschungsdaten, z. B. in Workflow-Prozessen, an denen der MixMate beteiligt ist. Erhöhen Sie Ihre Effizienz beim Dokumentieren, Organisieren, Suchen und Archivieren erfasster Daten. Mit den kostenlosen eLabJournal-Add-ons können Sie die Funktionen von eLabJournal zu einem vollintegrierten Laboratory Information Management System erweitern.

Jetzt 30 Tage kostenlos testen!
Erfahren Sie mehr auf www.eLABJournal.com

Weniger lesen

Spezifikationen	MixMate^®

Probenkapazität	max. 96 × 0,2 mL, 24 ×  0,5 mL, 24 × 1,5 mL, 24 × 2,0 mL, 8 × 5/15 mL, 4 × 25/50 mL, 1 × DWP/MTP oder 1 × PCR-Platte
Produkttyp	Mischer
Timer	15 s – 99,3 h, Dauerbetrieb
Geräuschpegel	<50 dB(A)
Netzanschluss	230 V, 50 – 60 Hz
Max. Stromverbrauch	40 W
Abmessungen (B × T × H)	17,0 × 23,0 × 13,0 cm / 6,7 × 9,1 × 5,1 in
Produktgewicht	4,2 kg / 9,2 lb
Max. Geschwindigkeit	3.000 rpm
Mischfrequenz	300 – 3.000 rpm
Misch- und Vortexradius	1.5 mm
Touch-Vortexfrequenz	3500 rpm
Misch- und Vortexorbit	3 mm

Downloads: MixMate^®

Broschüre

Die perfekte Mischung

Eppendorf Temperier- und Mischgeräte

PDF 2.0MB

Deutsch

Flyer

Facing Irregular Mixing Results?

PDF .4MB

Deutsch

Flyer

Facing Irregular Mixing Results?

Eppendorf Temperature Control and Mixing Instruments

PDF 2.1MB

Englisch

Sie könnte auch interessieren

Eppendorf Conical Tubes 25 mL

Die reduzierte Höhe ermöglicht einen leichten Probenzugriff, reduziert das Risiko von Kreuzkontaminationen zwischen Pipette und Gefäß und spart bis zu 30 % Platz im Ultratiefkühlgerät. Erhältlich mit Schnapp- und Schraubdeckel

Twin.tec PCR plates offer ideal features for reproducible PCR

Eppendorf twin.tec^® PCR Plates LoBind^®

Die spezielle Herstellungstechnologie verbindet die hohe Qualität mit den Vorteilen der twin.tec-PCR-Platte LoBind, um die Ausbeute an Zielmolekülen zu maximieren. Automationsfreundlich. Unterschiedliche Formate erhältlich.

Eppendorf Deepwell Plates

Hochwertige Eppendorf Deepwell Plates mit ausgezeichneter Leistung.

Eppendorf ThermoMixer^® C

Der Eppendorf ThermoMixer C kann Proben für Inkubationsschritte heizen, kühlen und mischen. Spezielle austauschbare SmartBlocks für unterschiedliche Gefäßformate bieten Flexibilität.

Eppendorf Microplate with OptiTrack_REG_ matrix

Eppendorf Microplates

Herausragende Transparenz mit der Eppendorf Microplate

Evenly shaped PCR plates for reliable heat transfer

Eppendorf twin.tec^® PCR Plates

Hochwertige PCR-Platten mit twin-Technologie. Dünnwandige Wells aus Polypropylen mit einem festen Polycarbonat-Rahmen sorgen für eine optimale Wärmeübertragung ohne Verformung und sind daher sehr automationsfreundlich. Unterschiedliche Formate erhältlich.

Achtung Sie verlassen diese Länder-Website.

MixMate®

Eppendorf MixMate with red skirted 384-well PCR plate

Eppendorf MixMate® - Tube holder for 0.5 mL vessels

Eppendorf MixMate® - Tube holder for 0.2 mL vessels/ 96-well PCR plates

Eppendorf MixMate® - Tube holder for 1.5/ 2.0 mL vessels

Eppendorf MixMate® - Tube holder for 5/ 15 mL vessels

Eppendorf MixMate® - Tube holder for 5/ 15 mL vessels

Eppendorf MixMate® - Tube holder for 25/ 50 mL vessels

Eppendorf MixMate - Ready to mix

Eppendorf MixMate - Easy change of settings

Eppendorf ThermoMixer and MixMate family

Eppendorf MixMate - Usage of DWP

Eppendorf MixMate - Usage of 0.2 mL PCR tubes

Eppendorf MixMate - Usage of semi-skirted 96-well PCR plate

Eppendorf MixMate with red skirted 384-well PCR plate

Eppendorf MixMate - Usage of vortex

Eppendorf mixing of small volumes

Eppendorf MixMate® - vortex function for conical tubes

2D-Mix Control Technology

Eppendorf Mixer!

Pellet resuspension

Vortexing

Produktinformationen

Haben Sie es mit uneinheitlichen Mischergebnissen zu tun?

2DMix–Steuerung

Benötigen Sie das Mischen kleiner Volumina?

Verschiedene Proben zu verarbeiten?

Sie benötigen verschiedene Gefäßformate?

Kämpfen Sie mit papierbasierter Dokumentation?

Technische Daten

Applikation

Eigenschaften

Downloads: MixMate®

MixMate^®

^2DMix–Steuerung

Downloads: MixMate^®
