How many speed-controlled pumps do the DASGIP bioreactors feature?

Up to eight peristaltic speed-controlled pumps per vessel offer continuous flow rates from 0.3 mL/h - 5 L/h. Each pump can be operated independently. Two different pump head sizes for the multi pump modules DASGIP MP4 and MP8, fitting various tube sizes make the DASGIP multi pumps a flexible and accurate solution.

How are DASGIP vessels agitated?

DASGIP bioreactors feature powerful overhead drives with agitation speeds ranging 30 – 1,600 rpm. The DASGIP TC4SC4 controls temperature and agitation in up to four bioreactors. Users can individually define each outlet set-point as well as choose from different operation modes (e.g. continuous or interval agitation).

Do stainless steel components bear any risk of corrosion?

As it is highly resistant to most laboratory chemicals, stainless steel, e.g. 1.4571 (AISI-316Ti), 1.4404 (AISI-316L), is used for wetted parts in DASGIP Bioreactor Systems. A passive coating made of chrome oxide protects the steel from oxidizing agents. Despite these protective properties, corrosion can still occur in extreme situations such as mechanical surface damage or when the parts come in contact with concentrated acids or alkaline solutions. An indication of corrosion can be discoloration that is visible even after a thorough cleaning (ultrasonic bath with an approved stainless steel cleaning solution).

text.skipToContent text.skipToNavigation

FR | EUR

Sorry, we couldn't find anything on our website containing your search term.

SciVario^® twin Benchtop Bioreactors for Microbiology

DASGIP Benchtop Bioreactors for Microbiology

Informations produit

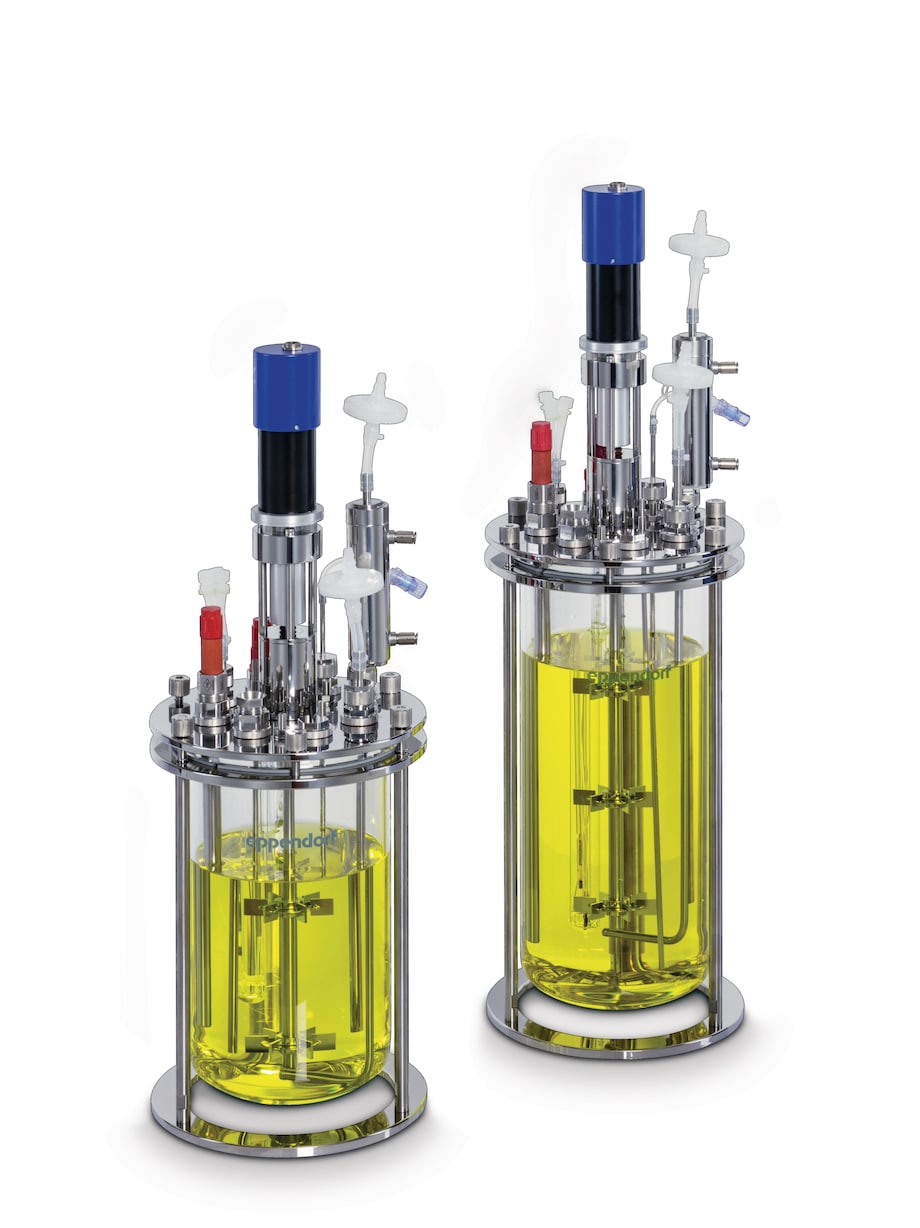

The SciVario twin benchtop bioreactors for microbiology are fully instrumented glass bioreactors for fermentation research and process development at bench scale. They are compatible with the SciVario twin bioreactor system. Two variants cover a working volume range from 750 mL to 3.7 L.

Afficher plus d’informations produit

Vous trouverez plus d’informations à télécharger au bas de cette page

Produits (2)

Services (1)

Accessoires (16)

2 Produits

Cuve DASGIP^®

DR04F, 800 mL – 3,7 L, barboteur L, entraînement par le haut
Agitateur de type Rushton

En savoir plus sur le produit...

Réf. catalogue 76DR04F

Ajouter à la liste

Cuve DASGIP^®

DR03F, 750 mL – 2,7 L, barboteur L, entraînement par le haut
Agitateur de type Rushton

En savoir plus sur le produit...

Réf. catalogue 76DR03F

Ajouter à la liste

Afficher plus de produits

Ajouté à votre panier

Informations produit

Applications

Caractéristiques

The SciVario twin benchtop bioreactors for microbiology are autoclavable glass vessels featuring a stainless-steel head plate with 16 industry-standard ports, Rushton-type impellers, and a direct overhead drive to ensure optimal conditions for research and process development. They offer highest flexibility regarding instrumentation and setup. All stainless-steel parts are laser-labelled with part numbers and have certificates of origin available.

Téléchargements: SciVario^® twin Benchtop Bioreactors for Microbiology

Données techniques

SciVario Benchtop Bioreactor Microbiology 2.5 L (Performance Sheet)

Technical Data, Features, Order No

PDF .3MB

Anglais

Brochure

Flexible from Head to Toe

SciVario^® twin bioprocess control system

PDF 7.7MB

Anglais

Données techniques

SciVario Benchtop Bioreactor Microbiology 3.5 L (Performance Sheet)

Technical Data, Features, Order No

PDF .3MB

Anglais

Brochure

You Develop. We Support.

Discover our bioprocess service offerings

PDF 3.9MB

Anglais

Cela peut aussi vous intéresser

BioBLU f Single-Use Vessels for microbial applications

BioBLU^® f Single-Use Bioreactors

Bioréacteurs à usage unique pour les applications microbiennes en R&D. Plage de volume de travail de 65  mL à 3,75 L

SciVario^® twin

Système de bioréacteurs à l’échelle du laboratoire pour faire fonctionner deux bioréacteurs en parallèle. Pour le développement de bioprocédés dans un volume de travail allant jusqu’à 40 L. Possibilité de mise à niveau rapide pour s’adapter à l’évolution des besoins des utilisateurs.

Vous vous apprêtez à quitter ce site.

SciVario® twin Benchtop Bioreactors for Microbiology

DASGIP Benchtop Bioreactors for Microbiology

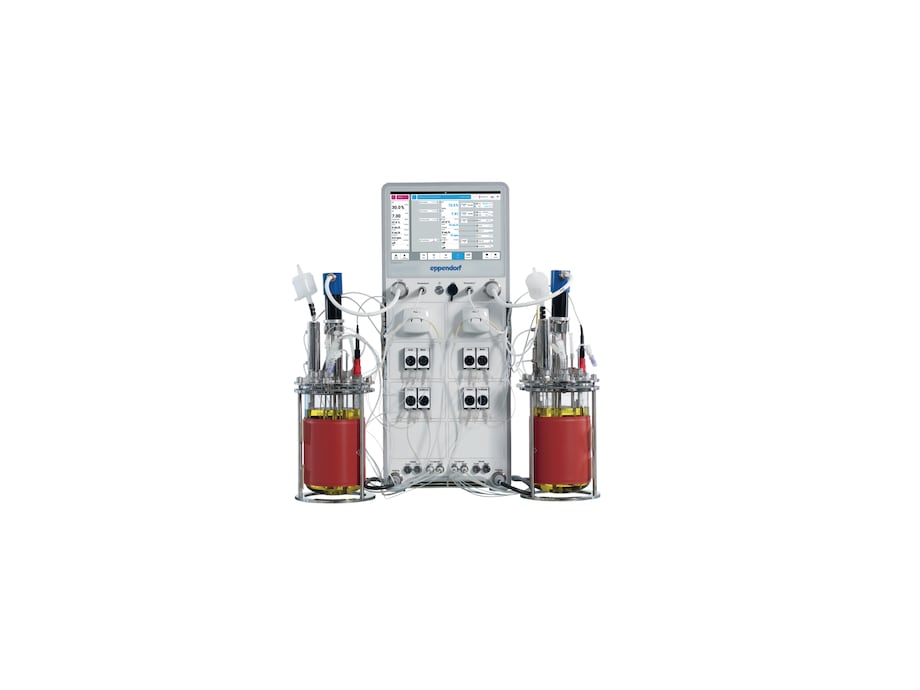

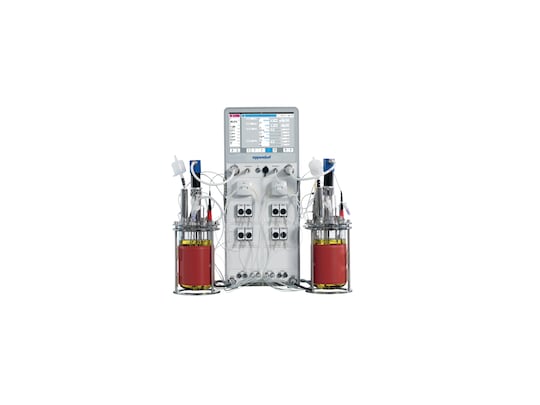

SciVario twin cropped, DR03 MB HB
