Are start and end position of the SmartBlocks the same?

No. Start and end position are not identical.

How can the temperature accuracy be verified?

The best possible temperature accuracy can be guaranteed by individually adjusting a SmartBlock. Optimized temperature control for each block type keeps temperature overshoots and deviations caused by external interferences to a minimum. To guarantee optimal performance over the entire period of use, Eppendorf offers a preventive maintenance program and certification services: your Eppendorf ThermoMixers, ThermoStat C as well as the SmartBlocks are regularly cleaned, checked and adjusted. Additional information is available at: https://www.eppendorf.com/epservices . Customers can also verify the temperature accuracy by themself. Eppendorf provides for that purpose the Temperature Verification System – Single Well for Eppendorf Mastercyclers (0056 000.003) in combination with the 384 well Sensor (0056 002.006).

Can cell culture plates be used in the SmartBlock plates?

Also cell cultuture plates can be used in the SmartBlock plates in so far the dimensions of the plate comply to the SBS standard.

Is it possible to put the SmartBlocks for a rapid cool down into a -20°C freezer?

The SmartBlocks can be used at ambient temperatures of 5°C – 40°C and can be cooled appropriate. Cooling down of SmartBlocks in a freezer should not be done.

Which SmartBlocks and vessels can be used with ThermoMixers F?

The ThermoMixers F possess a fix installed SmartBlock and can only be used with the appropriate microtest tubes or plates, such as MTP’s, DWP’s or skirted plates complying the SBS standard. For using PCR plates our SmartBlocks PCR 96 and PCR 384 in combination with ThermoMixer C is the proper choice.

Do the IsoRacks fit upon the SmartBlocks for microreaction tubes (0.5 mL; 1.5 mL; 2.0 mL)?

No. The IsoRacks fit only upon the Thermoblocks for the older devices Thermomixer comfort, Thermomixer compact & ThermoStat plus.

Can PCR plates be used in SmartBlock plates respectively ThermoMixer FP?

SmartBlock plates and ThermoMixer FP (with the fixed SmartBlock plates) are dedicated for using MTP’s, DWP’s and also other skirted plates which meet the SBS standard. For optimal usage of PCR plates the SmartBlock PCR 96 and PCR 384 in combination with ThermoMixer C or ThermoStat C is the proper choice. These SmartBlocks possess conical bores which surround the conical wells of PCR plates properly for a perfect temperature transition.

Smart Block cryo Thaw on ThermoMixer C - What is the ‘Thawing cells’ program?

The 'Thawing cells' program is an optimized program to thaw mammalian cells in 1.8-2.0 mL cryovials: reproducibly contamination free standardized It is a ready-to use program, in most cases no changes are required. The pre-set time is 3 minutes (can be extended up to 5 minutes), the pre-set mixing frequency is 500 rpm (can be adapted between 300 – 800 rpm), the temperature profile is fixed. The settings are based on tests with standard mammalian cell lines (CHO, HEK, S16) up to highly sensitive stem cells (hiPSCs) at tested conditions with 2.0 mL cryovials / 1.0 mL fill (1 – 5 vials in parallel). Other volumes or more vials may require an adaption of thawing time. Further information can be found in the Application Note 437 .

What is the difference between the SmartBlock cryo thaw and the SmartBlock cryo?

The 'SmartBlock cryo thaw' replaces the 'SmartBlock cryo'. Newly implemented is an automatic function for thawing cells (program 'Thawing cells') which is available in combination with the ThermoMixer C.

Is it possible to use the SmartBlock cryo thaw with the ThermoStat C?

The SmartBlock cryo thaw is still compatible with the ThermoStat C. However, the automatic thawing function 'thawing cells' is limited to the ThermoMixer C as it requires mixing.

The ThermoMixer C does not show the program ‘Thawing cells’ when inserting the SmarBlock cry thaw. Why?

The software version 3.5.0 or higher is required on the ThermoMixer C to operate the program 'Thawing cells'. How to upgrade the software is described in the operating manual.

Is it possible to use the SmartExtender with the SmartBlock cryo thaw?

The Smart Extender can be used with the SmartBlock cryo thaw, but not in parallel a 'Thawing cells' program is running. In case the user is operating the SmartExtender and intends to start the thawing procedure, the user is informed by a message with the option to stop the SmartExtender and vice versa. There is no automatic stop or re-start of the running program to not disturb the application.

SmartBlock cryo thaw - Does the mixing during the thawing program harm the cells?

No, in opposite, a slight mixing (500 rpm paired with a small 3 mm orbit) serves to distribute the temperature in the vial evenly reduces temperature gradients and inhomogeneous warming of cells by preventing sedimentation Reproducibility and confirm the suitability of the thawing method has been proven with: in-vial temperature measurements analyzing post-thawing cell viability further downstream tests (confirming pluripotency for stem cells). Further information can be found in the Application Note 437 (https://www.eppendorf.com/ThermoMixer)

Is it possible to use former SmartBlock cryo with the program ‘thawing cells’?

No, the program 'thawing cells' is limited to the SmartBlock cryo thaw.

text.skipToContent text.skipToNavigation

CN | CNY

未找到任何结果

搜索建议

产品系列

Show all Product Families ()

文章

Show all Articles ()

内容

Show all Content ()

Eppendorf SmartBlock加热模块

Eppendorf SmartBlock family: Different formats for different tube sizes

Eppendorf ThermoStat C with selection of different Smartblocks

Eppendorf SmartBlock removal by pressing the lever (Step 1)

Eppendorf SmartBlock removal by pressing the lever (Step 2)

Eppendorf SmartBlock removal by pressing the lever (Step 3)

Eppendorf SmartBlock for 24 x 1.5 mL vessels

Eppendorf SmartBlock for 24 x 2.0 mL vessels

Eppendorf SmartBlock for 8 x 5.0 mL vessels

Eppendorf SmartBlock for 8 x 15.0 mL vessels

Eppendorf SmartBlock for 4 x 50.0 mL vessels

Adapter for 25 mL conical tubes to be used in Eppendorf ThermoMixer C

Eppendorf SmartBlock for 24 x 12 mm vessels

Eppendorf SmartBlock for 24 x cryo vessels with several cryovials

Eppendorf SmartBlock DWP 500 with white DWP

Eppendorf SmartBlock DWP 1000 with DWP at bench

Eppendorf SmartBlock for plates incl white-blue DWP

Eppendorf SmartBlock for 96-well PCR plates with blue 96-well semi-skirted PCR plate

Eppendorf SmartBlock for 384-well PCR plates with red PCR plate

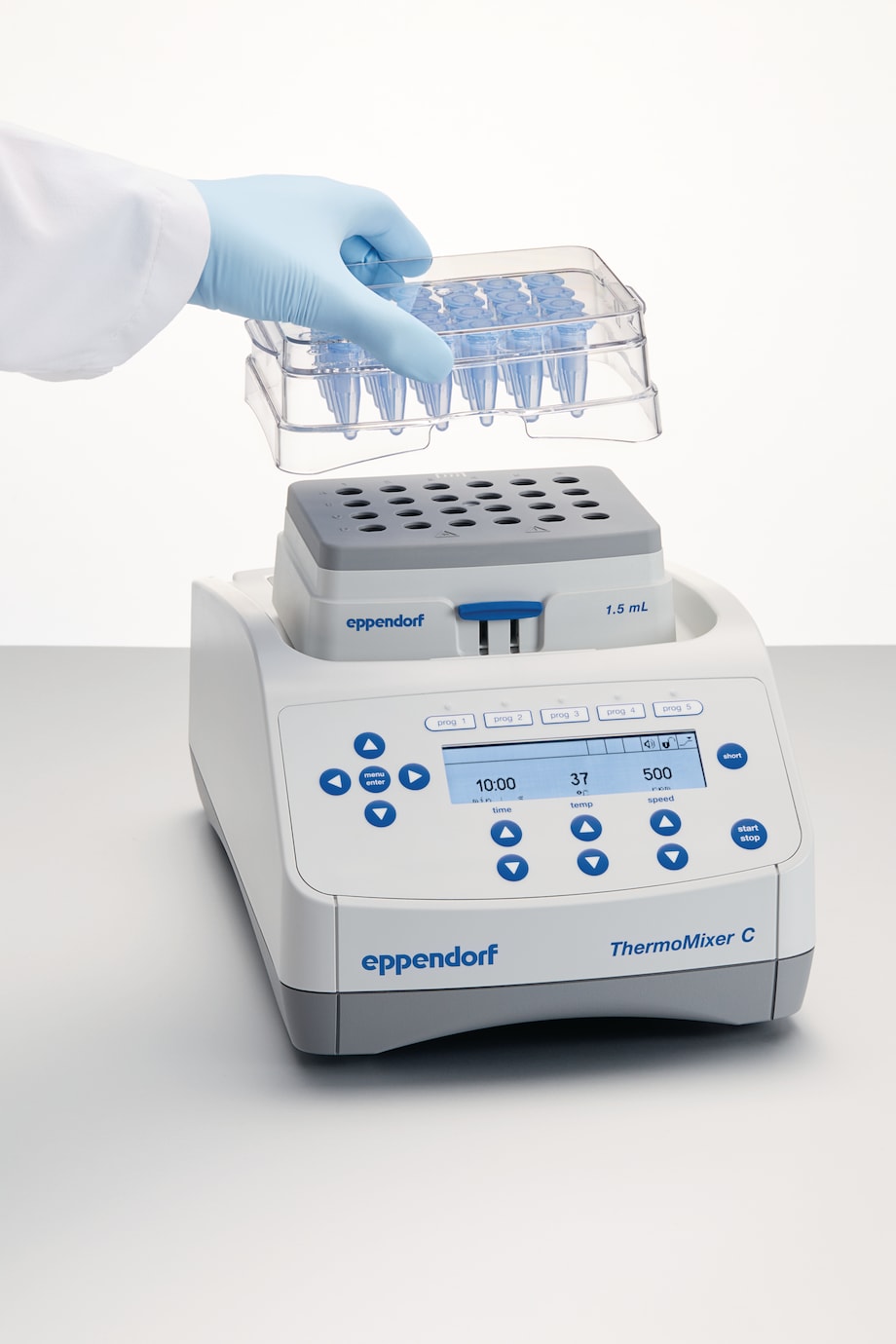

Eppendorf Transfer_Rack_1.5/2.0 mL_to transfer samples from Eppendorf ThermoMixer C

Set of Eppendorf SmartBlocks with ThermoTop

产品信息

可在几秒钟内更换加热模块
受独立传感器控制的 SmartBlocks 是您精准、稳定控温的不二之选。Eppendorf 不同类型的灵活加热模块，适配Eppendorf ThermoMixer^® C舒适型恒温混匀仪（加热/冷却/混匀）和ThermoStat C恒温孵育器（加热/冷却），适用实验室所有常用的样品管和工作板，满足广泛的应用需求。

显示更多产品信息

您可以在以下网址找到其他下载资料本页面底部

产品 (18)

附件 (1)

18 产品

Eppendorf SmartBlock 0.5 mL

适用于 24 个 0.5 mL 样品管的加热模块
包括转移管架 0.5 mL

更多产品详情...

数量

库存状态

目录编号 5361000031

价格

¥ 12,013.00

查询

Eppendorf SmartBlock 1.5 mL

适用于 24 个 1.5 mL 样品管的加热模块
包括转移管架 1.5/2.0 mL

更多产品详情...

数量

库存状态

目录编号 5360000038

价格

¥ 12,013.00

查询

Eppendorf SmartBlock 2.0 mL

适用于 24 个 2.0 mL 样品管的加热模块
包括转移管架 1.5/2.0 mL

更多产品详情...

数量

库存状态

目录编号 5362000035

价格

¥ 12,013.00

查询

Eppendorf SmartBlock 5 mL

适用 8 个 Eppendorf Tubes^® 5.0 mL 的加热模块
可放置 8 × 5.0 mL 反应管

更多产品详情...

数量

库存状态

目录编号 5309000007

价格

¥ 11,887.00

查询

Eppendorf SmartBlock 15 mL

适用于 8 个 15 mL 锥形管的加热模块

更多产品详情...

数量

库存状态

目录编号 5366000021

价格

¥ 12,137.00

查询

Eppendorf SmartBlock 50 mL

适用于 4 个 50 mL 锥形管的加热模块

更多产品详情...

数量

库存状态

目录编号 5365000028

价格

¥ 12,137.00

查询

适用 50 mL Eppendorf SmartBlock 的 25 mL 适配器

套件包含 4 个适配器和拆卸工具

更多产品详情...

数量

库存状态

目录编号 5365000109

价格

¥ 3,057.00

查询

适用 25 mL 适配器的拆卸工具

适用 SmartBlock 50 mL

更多产品详情...

数量

库存状态

目录编号 5365850005

价格

¥ 808.00

查询

Eppendorf 96 孔 PCR 板 SmartBlock加热模块

适用于 96 孔 PCR 板的加热模块
包括盖子

更多产品详情...

数量

库存状态

目录编号 5306000006

价格

¥ 16,719.00

查询

Eppendorf 384 孔 PCR 板 SmartBlock加热模块

适用于 384 孔 PCR 板的加热模块
包括盖子

更多产品详情...

数量

库存状态

目录编号 5307000000

价格

¥ 16,719.00

查询

显示更多产品

已添加到您的购物车

产品信息

技术数据

特征

在您的实验室工作流程中使用不同尺寸容器？
前所未有的灵活性。Eppendorf 提供多种可更换式 Eppendorf SmartBlocks 加热模块可选，包括 0.2mL 至 50mL 的反应管和工作板（微孔板、深孔板、96/384 孔 PCR 板）与 Eppendorf ThermoMixer^® C 和 ThermoStat C 配合使用。所有 Eppendorf SmartBlocks 加热模块均具备卓越的 Eppendorf QuickRelease 技术，便于快速而简便地更换模块。
为了获得最佳匹配度和温度传递性能，我们建议将Eppendorf Deepwell Plates搭配相应的Eppendorf SmartBlock DWP 500和EppendorfSmartBlock DWP 1000一起使用。请注意， EppendorfSmartBlock DWP 500 和 EppendorfSmartBlock DWP 1000仅能搭配Eppendorf Deepwell Plates.一起使用。

没有可用工具？

Eppendorf SmartBlocks 加热模块更换起来很容易。只需按下模块前方摇杆，即可在几秒钟内更换加热模块–，无需任何工具。

阅读更少

规格	0.5 mL SmartBlock 加热模块	1.5 mL SmartBlock 加热模块	2.0 mL SmartBlock 加热模块	5.0 mL SmartBlock 加热模块	15 mL SmartBlock 加热模块	50 mL SmartBlock 加热模块	96 孔 PCR 板 SmartBloc 加热模块	384 孔 PCR 板 SmartBlock 加热模块	工作板 SmartBlock 加热模块	500 孔深孔板 SmartBlock 加热模块	1,000 孔深孔板 SmartBlock 加热模块	SmartBlock 冻融	12mm SmartBlock加热模块

ThermoTop 热盖	是	是	是	−	−	−	是	是	是	是	是	否	−
样品容量	24 × 微型试管 (0.5 mL)	24 × 微型试管 (1.5 mL)	24 × 微型试管 (2.0 mL)	8 × 5 mL	8 × 15 mL 锥形管	4 × 50 mL 锥形管	1个 PCR板 96	1个 PCR板 384	1 × 微型试验板 / 1 × 深孔板	Eppendorf Deepwell Plates 96/500 µL	Eppendorf Deepwell Plates 96/1,000 µL	24 × 个冻存管的加热模块 (1.5/2.0 mL)	24 × 微型试管，直径 12 mm
SmartExtender	是	是	是	是	是	是	是	是	是	是	是	是	是
ThermoMixer C / ThermoStat C	是	是	是	是	是	是	是	是	是	是	是	是	是
最高温度	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	110°C¹⁾	110°C¹⁾
盖²⁾	是	是	是	−	−	−	是	是	是	是	是	−	−
