How many speed-controlled pumps do the DASGIP bioreactors feature?

Up to eight peristaltic speed-controlled pumps per vessel offer continuous flow rates from 0.3 mL/h - 5 L/h. Each pump can be operated independently. Two different pump head sizes for the multi pump modules DASGIP MP4 and MP8, fitting various tube sizes make the DASGIP multi pumps a flexible and accurate solution.

How are DASGIP vessels agitated?

DASGIP bioreactors feature powerful overhead drives with agitation speeds ranging 30 – 1,600 rpm. The DASGIP TC4SC4 controls temperature and agitation in up to four bioreactors. Users can individually define each outlet set-point as well as choose from different operation modes (e.g. continuous or interval agitation).

Do stainless steel components bear any risk of corrosion?

As it is highly resistant to most laboratory chemicals, stainless steel, e.g. 1.4571 (AISI-316Ti), 1.4404 (AISI-316L), is used for wetted parts in DASGIP Bioreactor Systems. A passive coating made of chrome oxide protects the steel from oxidizing agents. Despite these protective properties, corrosion can still occur in extreme situations such as mechanical surface damage or when the parts come in contact with concentrated acids or alkaline solutions. An indication of corrosion can be discoloration that is visible even after a thorough cleaning (ultrasonic bath with an approved stainless steel cleaning solution).

text.skipToContent text.skipToNavigation

IT | EUR

Nessun risultato trovato

Cerca suggerimenti

Famiglie di Prodotti

Show all Product Families ()

Articolo

Show all Articles ()

Contenuti

Show all Content ()

SciVario^® twin Benchtop Bioreactors for Microbiology

DASGIP Benchtop Bioreactors for Microbiology

Informazioni sul prodotto

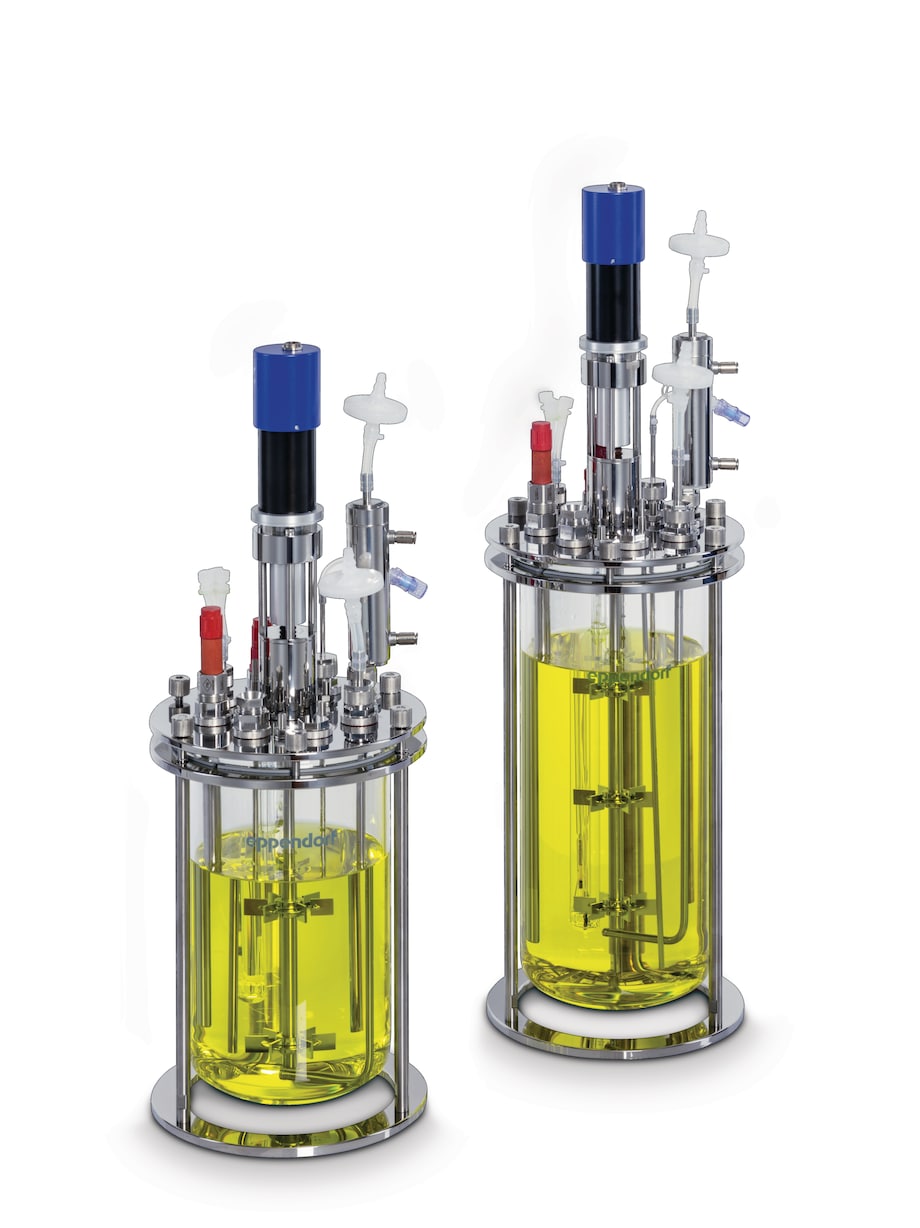

The SciVario twin benchtop bioreactors for microbiology are fully instrumented glass bioreactors for fermentation research and process development at bench scale. They are compatible with the SciVario twin bioreactor system. Two variants cover a working volume range from 750 mL to 3.7 L.

Mostra più informazioni sul prodotto

Troverai ulteriore materiale scaricabilein fondo a questa pagina

Prodotti (2)

Services (4)

Accessori (16)

2 Prodotti

Giara DASGIP^®

DR04F, 800 mL – 3,7 L, diffusore a L, azionamento di testa
Girante di tipo Rushton

Più dettagli prodotto...

N. catalogo 76DR04F

Giara DASGIP^®

DR03F, 750 mL – 2,7 L, diffusore a L, azionamento di testa
Girante di tipo Rushton

Più dettagli prodotto...

N. catalogo 76DR03F

Mostra più prodotti

Aggiunto al tuo carrello

Informazioni sul prodotto

Applicazioni

Caratteristiche

The SciVario twin benchtop bioreactors for microbiology are autoclavable glass vessels featuring a stainless-steel head plate with 16 industry-standard ports, Rushton-type impellers, and a direct overhead drive to ensure optimal conditions for research and process development. They offer highest flexibility regarding instrumentation and setup. All stainless-steel parts are laser-labelled with part numbers and have certificates of origin available.

Download: SciVario^® twin Benchtop Bioreactors for Microbiology

Depliant

One for All

SciVario^® twin bioprocess control system

PDF 4.0MB

Inglese

Foglio prestazioni

SciVario Benchtop Bioreactor Microbiology 2.5 L (Spec Sheet)

Technical Data, Features, Order No

PDF .3MB

Inglese

Foglio prestazioni

SciVario Benchtop Bioreactor Microbiology 3.5 L (Spec Sheet)

Technical Data, Features, Order No

PDF .3MB

Inglese

Depliant

You Develop. We Support.

Discover our bioprocess service offerings

PDF 3.9MB

Inglese

Potrebbe interessarti anche

BioBLU f Single-Use Vessels for microbial applications

BioBLU^® f Single-Use Bioreactors

Per applicazioni microbiche. Range di volume di lavoro da 65 mL a 3,75 L.

SciVario^® twin

Sistema di bioreattori in scala laboratorio per la gestione in parallelo di due bioreattori. Per lo sviluppo di bioprocessi con volumi di lavoro fino a 40 L. Facilmente aggiornabile per adattarsi alle mutevoli esigenze degli utenti.
